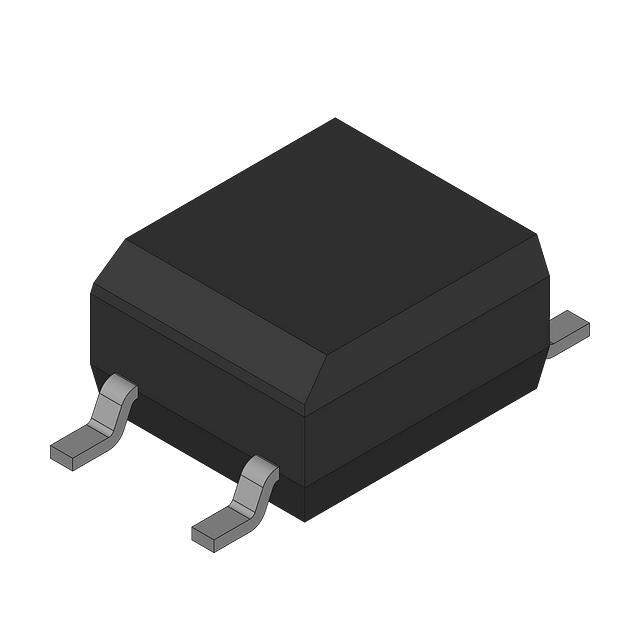

HMA2701B Real Image
Same model may have multiple batches, images only for reference.

HMA2701B

Part No HMA2701B
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANSISTOR 4SMD
Datasheet
HMA2701B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Part Status Obsolete(EOL)
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Minimum) 80% @ 5mA
Current Transfer Ratio (Maximum) 160% @ 5mA
Rise / Fall Time (Typ) 3μs, 3μs
Input Type DC
Output Type Transistor
Output Voltage MAX 40V
Output Current per Channel 80mA
Voltage - Forward (Vf) (Typ) 1.3V (Maximum)
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 300mV
Operating Temperature Range -40°C ~ 100°C
Mounting SMD
Package 4-SMD, Gull Wing
Manufacturer Package 4-Mini-Flat
Win Source Part Number 776070-HMA2701B
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HMA2701B CAD Model

Description

The Fairchild/ON Semiconductor HMA2701B is an obsolete (EOL) transistor output optocoupler that offers an isolation voltage of 3750Vrms.

  • Isolation Voltage: 3750Vrms
  • Current Transfer Ratio (Minimum): 80% @ 5mA
  • Current Transfer Ratio (Maximum): 160% @ 5mA
  • Voltage - Forward (Vf) (Typ): 1.3V (Maximum)
  • Rise / Fall Time (Typ): 3μs / 3μs
  • Maximum Output Voltage: 40V
  • Output Current: 80mA
  • RoHS Compliance: Yes
