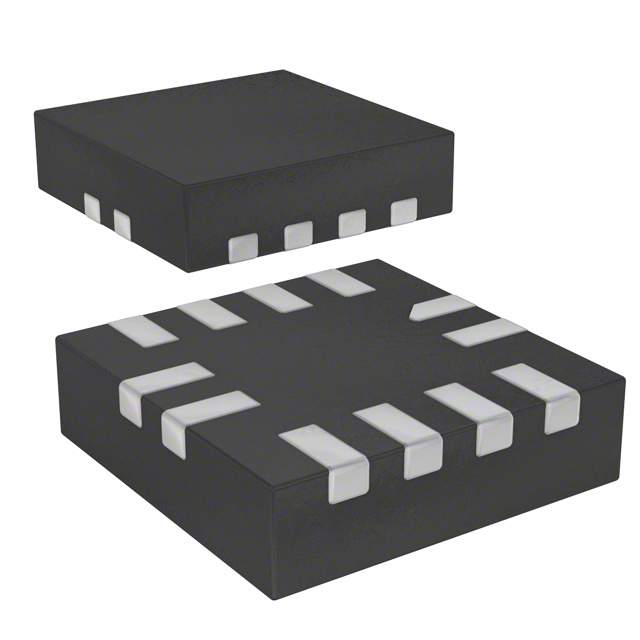

Same model may have multiple batches, images only for reference.
FSA3030UMX Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FSA3030UMX

Part No FSA3030UMX
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches - Special Purpose
Description IC SWITCH 2 X DP3T 12-UMLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Applications USB
Switch Circuit DP3T
Number of Channels 1
Max On Resistance 4.5 Ohm (USB), 4 Ohm (Audio) (Typ)
Single Supply Voltage (V+) 2.5 V to 4.5 V
-3db Bandwidth 2GHz
Features Break-Before-Make, USB 2.0
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 12-UMLP (1.8x1.8)
Win Source Part Number 129203-FSA3030UMX
Popularity Medium
Supply and Demand Status Limited
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FSA3030UMX CAD Model

Description

The Fairchild/ON Semiconductor FSA3030UMX is a DP3T switch circuit integrated circuit.

  • -3db Bandwidth: 2GHz
  • Max On Resistance: 4.5 Ohm (USB), 4 Ohm (Audio) (Typ)
  • Single Supply Voltage (V+): 2.5V to 4.5V
  • Application: USB
  • Features: Break-before-make, USB 2.0
  • Package: 12-UMLP (1.8x1.8)
  • Category: Integrated Circuits
  • Operating Temperature: -40°C to 85°C (TA)
  • Supply and Demand Status: Limited
  • Quantity per Package: 5k pcs
