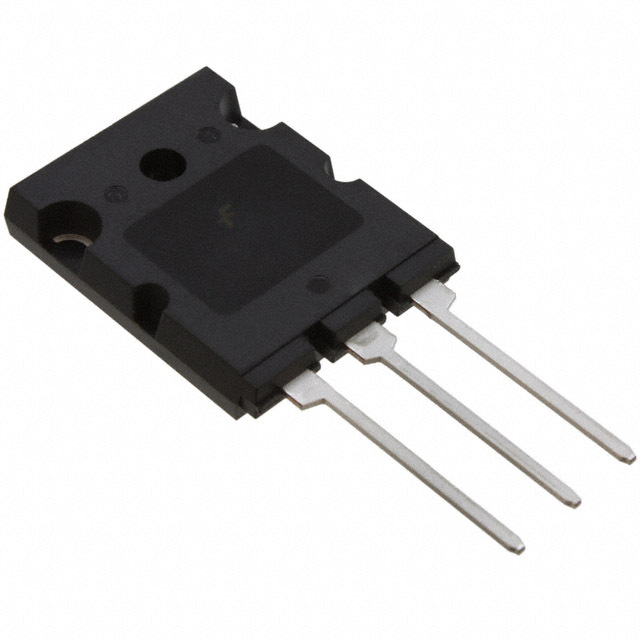

FGL60N100BNTD Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FGL60N100BNTD

Part No FGL60N100BNTD
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 1000V 60A 180W TO264 / Trans IGBT Chip N-CH 1000V 60A 180000mW 3-Pin(3+Tab) TO-264 Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Not For New Designs
IGBT Type NPT and Trench
VCEO Maximum Collector-Emitter Breakdown Voltage 1000V
Maximum Current Collector 60A
Pulsed Collector Current 120A
Collector-emitter saturation voltage(Max) 2.9V @ 15V, 60A
Maximum Power Dissipation 180W
Input Type Standard
Gate Charge 275nC
Turn-on and Turn-off delay time 140ns/630ns
Testing Conditions 600V, 60A, 51 Ohm, 15V
Reverse Recovery Time (trr) 1.2μs
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-264
Win Source Part Number 088539-FGL60N100BNTD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 375
Family Name FGL60N100BNTD
Introduction Date March 08, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian FGL60N100BNTD CAD Model

Description

The Fairchild/ON Semiconductor IGBT with Win Source Part Number 088539-FGL60N100BNTD is a high-performance NPT and trench IGBT designed for through-hole mounting. It has a collector-emitter breakdown voltage of 1000V and a maximum collector current of 60A.

  • The IGBT has a collector-emitter saturation voltage of 2.9V @ 15V, 60A and a gate charge of 275nC.
  • It is designed to operate in a temperature range of -55°C to 150°C (TJ).
  • The IGBT has a dimension of TO-264.
  • This IGBT is suitable for use in various applications, including power supplies, motor control, and inverters.
