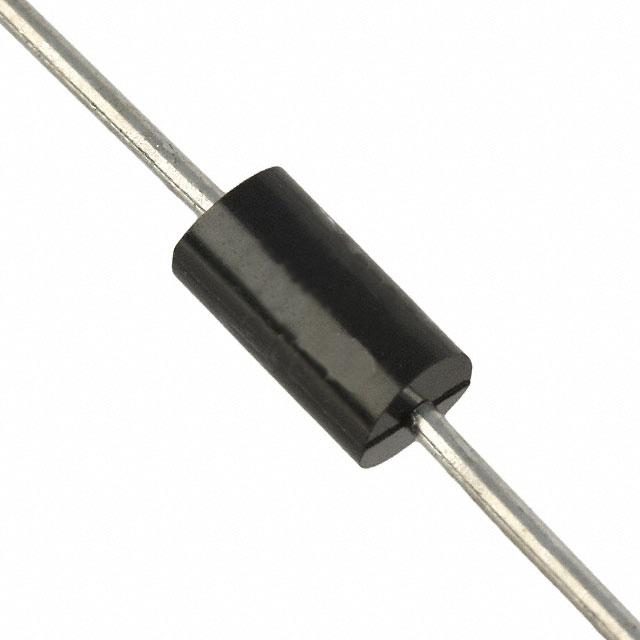

Same model may have multiple batches, images only for reference.
EGP20KTA Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

EGP20KTA

Part No EGP20KTA
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 800V 2A DO15
Datasheet
EGP20KTA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 800V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 1.7V @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 75ns
Current - Reverse Leakage @ Vr 5μA @ 800V
Capacitance @ Vr, F 45pF @ 4V, 1MHz
Mounting Through Hole
Case / Package DO-15
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 1035955-EGP20KTA
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian EGP20KTA CAD Model

Description

The EGP20KTA is a standard diode manufactured by Fairchild/ON Semiconductor.

  • Mounting: through-hole
  • Package: DO-15
  • Maximum Reverse Voltage: 800V
  • Average Rectified Current: 2A
  • Forward Voltage: 1.7V @ 2A
  • Reverse Recovery Time: 75ns
  • Current Leakage @ 800V Reverse Voltage: 5μA
  • Capacitance @ 4V and 1MHz: 45pF
  • Operating Temperature Range: -65°C to 150°C
  • Category: Discrete Semiconductor Products
  • Status: active
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Package Quantity: 4k pcs
