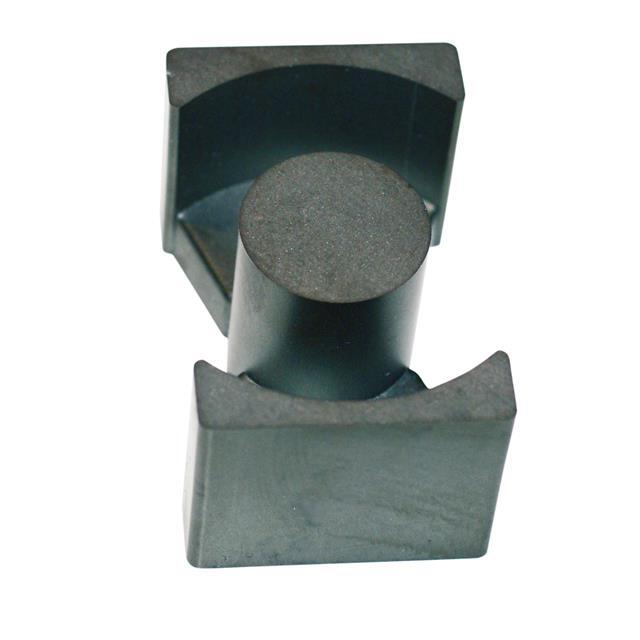

Same model may have multiple batches, images only for reference.
6295230121 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

6295230121

Part No 6295230121
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE RM 95 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type RM
Material 95
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 3000
Core Factor (ΣI/A) mm⁻¹ 67.0
Effective Length (le) mm 40.3
Effective Area (Ae) mm2 60.0
Minimum Core Cross Section (Amin) mm2 55.4
Effective Magnetic Volume (Ve) mm3 2419.0
Finish Uncoated
Height 0.323" (8.20mm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528107-6295230121
Ultra Librarian 3D Model Ultra Librarian 6295230121 CAD Model
