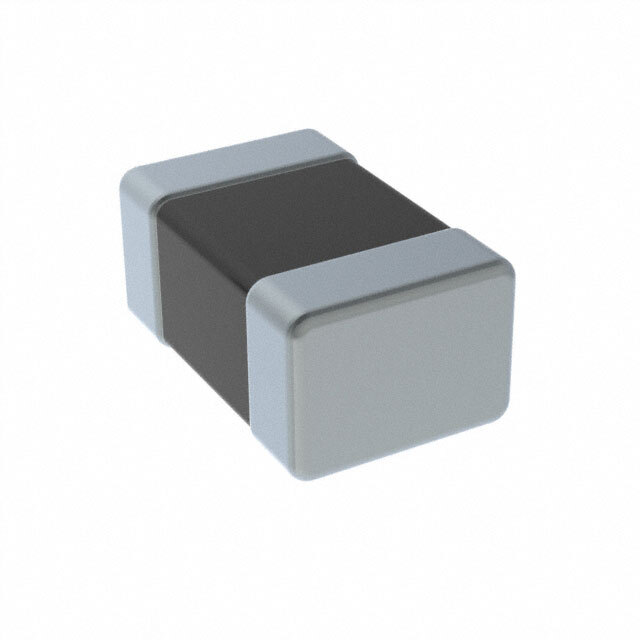

Same model may have multiple batches, images only for reference.
2744041447 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

2744041447

Part No 2744041447
Manufacturer FAIR-RITE PRODUCTS
Catalog Common Mode Chokes
Description CMC 5A 2LN 33 OHM SMD
Datasheet
2744041447 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 33 Ohms @ 100 MHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 1.1mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.220" L x 0.197" W (5.60mm x 5.00mm)
Height (Max) 0.120" (3.05mm)
Case / Package Horizontal, 4 PC Pad
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1527399-2744041447
Ultra Librarian 3D Model Ultra Librarian 2744041447 CAD Model
