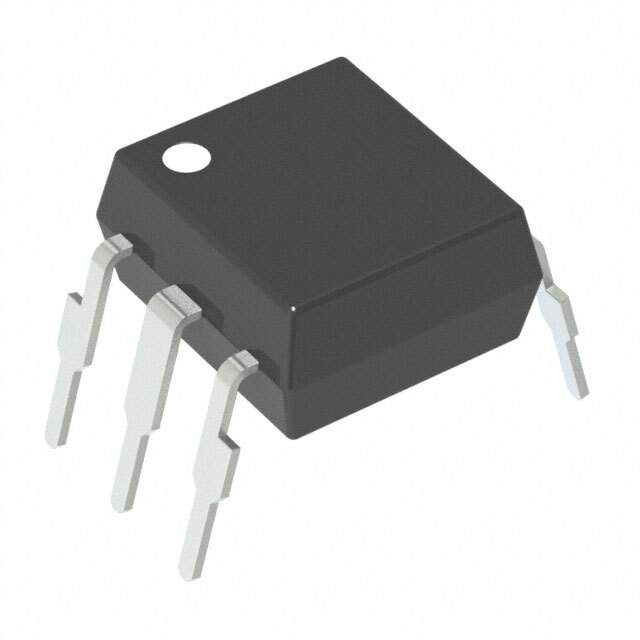

H11L2 Real Image
Same model may have multiple batches, images only for reference.

H11L2

Part No H11L2
Manufacturer Everlight Electronics Co Ltd
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLLECTOR 6DIP / 6-Pin DIP Optoisolators Logic Output
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Everlight Electronics Co Ltd
Packaging Tube
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Input Type DC
Output Type Open Collector
Current - Output / Channel 50mA
Data Rate 1MHz
Propagation Delay tpLH / tpHL (Maximum) 4μs, 4μs
Rise / Fall Time (Typ) 100ns, 100ns
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Maximum) 60mA
Supply Voltage (V) 3V ~ 16V
Temperature Range - Operating -55°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package 6-DIP
Supplier Device Package 6-DIP
Manufacturer Pack Quantity 65
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810600-H11L2
Ultra Librarian 3D Model Ultra Librarian H11L2 CAD Model

Description

The Everlight Electronics Co Ltd 810600-H11L2 is an electronic component.

  • Output Type: Open Collector
  • Data Rate: 1MHz
  • Operating Temperature: -55°C to 100°C
  • Mounting Style: Through Hole
