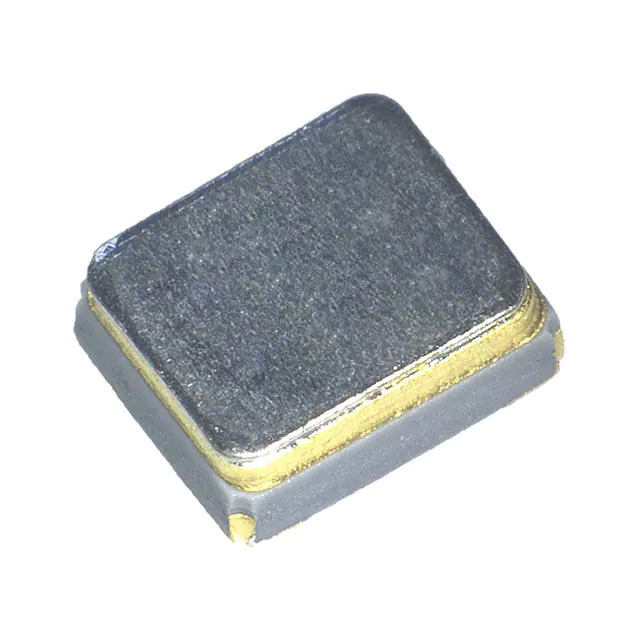

Same model may have multiple batches, images only for reference.
TG2016SMN 38.4000M-MCGNNM3 Epson Electronics America Inc-Semiconductor Div
Same model may have multiple batches, images only for reference.

TG2016SMN 38.4000M-MCGNNM3

Part No TG2016SMN 38.4000M-MCGNNM3
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Oscillators
Description XTAL OSC TCXO 38.4000MHZ CSWV
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr EPSON
Series TG2016SMN
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type TCXO
Frequency 38.4 MHz
Function -
Output Clipped Sine Wave
Voltage - Supply 2.8V ~ 3.3V
Frequency Stability ±500ppb
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 1.8mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.029" (0.73mm)
Current - Supply (Disable) (Max) -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366312-TG2016SMN 38.4000M-MCGNNM3
Ultra Librarian 3D Model Ultra Librarian TG2016SMN 38.4000M-MCGNNM3 CAD Model

Description

The TG2016SMN 38.4000M-MCGNNM3 is a TCXO (Temperature Compensated Crystal Oscillator) from EPSON. It is part of the TG2016SMN series and comes in a tape & reel package.

  • Series: TG2016SMN
  • Packaging: Tape & Reel
  • Frequency: 38.4 MHz
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 85°C
  • Voltage Supply: 2.8V to 3.3V
  • Current Supply: 1.8mA (Maximum)
  • Frequency Stability: ±500ppb
