Same model may have multiple batches, images only for reference.

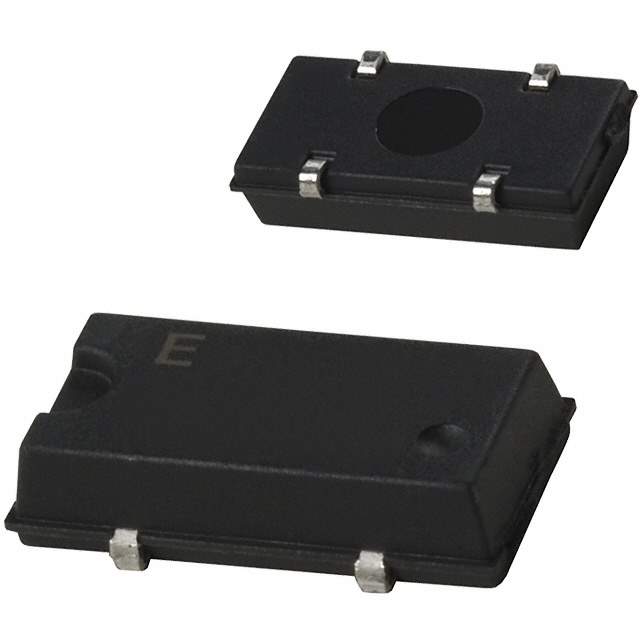

SG-636PCW 66.0000MC3: ROHS Real Image
Same model may have multiple batches, images only for reference.

SG-636PCW 66.0000MC3: ROHS

Part No SG-636PCW 66.0000MC3: ROHS
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Oscillators
Description SMD Xtl Mhz 3.3V+/-100PPM 250TR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Frequency 66 MHz
Frequency Stability 100 ppm
Height 2.6924 mm
Length 10.4902 mm
Load Capacitance 15 pF
Maximum Operating Temperature 85 °C
Max Supply Current 28 mA
Max Supply Voltage 3.6 V
Min Operating Temperature -40 °C
Min Supply Voltage 3 V
Mount Surface Mount
Number of Pins 4
Operating Supply Voltage 3.3 V
RoHS Compliant
Termination SMD/SMT
Width 5.0038 mm
Categories Oscillators
Manufacturer Epson Electronics America Inc-Semiconductor Div
Popularity Low
Supply and Demand Status Shortage
Win Source Part Number 1104450-SG-636PCW 66.0000MC3: ROHS
Ultra Librarian 3D Model Ultra Librarian SG-636PCW 66.0000MC3: ROHS CAD Model

Description

The Epson Electronics America Inc-Semiconductor Div Oscillator is a high-quality electronic component with a frequency of 66 MHz and a frequency stability of 100 ppm.

  • Frequency: 66 MHz
  • Frequency Stability: 100 ppm
  • Load Capacitance: 15 pF
  • Suitable for: use in a variety of electronic devices
  • Height: 2.6924 mm
  • Width: 5.0038 mm
  • Length: 10.4902 mm
  • Maximum Operating Temperature: 85°C
  • Minimum Operating Temperature: -40°C
  • Supply Voltage: 3.3 V
  • Maximum Supply Current: 28 mA
  • RoHS Compliant: true
  • Mountable: on a surface
