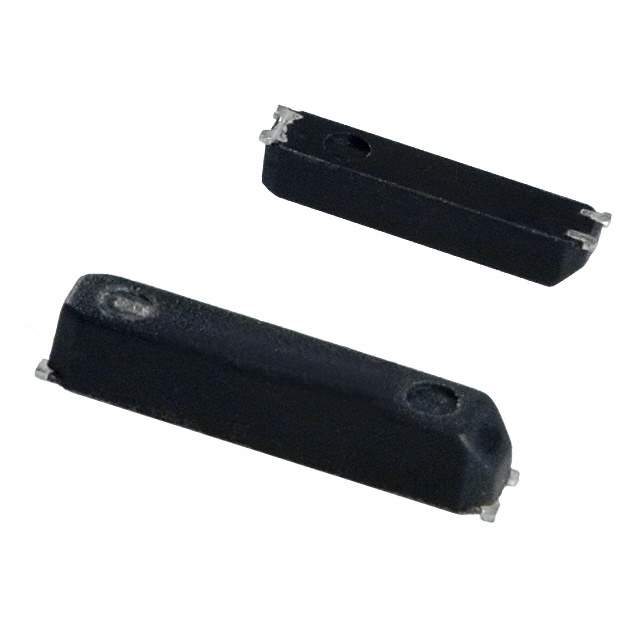

MC-146 32.768KA-AC3:ROHS Real Image
Same model may have multiple batches, images only for reference.

MC-146 32.768KA-AC3:ROHS

Part No MC-146 32.768KA-AC3:ROHS
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Crystals
Description CRYSTAL 32.7680KHZ 9PF SMD
Datasheet
MC-146 32.768KA-AC3:ROHS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer EPSON
Packaging Reel - TR
Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768kHz
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR 65 kOhm
Operating Mode Fundamental
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.264" L x 0.059" W (6.70mm x 1.50mm)
Height - Seated (Max) 0.055" (1.40mm)
Popularity Medium
Supply and Demand Status Sufficient
Win Source Part Number 489171-MC-146 32.768KA-AC3:ROHS
Ultra Librarian 3D Model Ultra Librarian MC-146 32.768KA-AC3:ROHS CAD Model

Description

The EPSON 32.768kHz Crystal (Tuning Fork) is an active component with a medium popularity and sufficient supply and demand status.

  • Frequency Tolerance: ±20ppm
  • ESR: 65 kOhm
  • Mode: Fundamental
  • Load Capacitance: 9pF
  • Temperature Range: -40°C to 85°C
  • Suitable for: Various electronic applications
