Same model may have multiple batches, images only for reference.

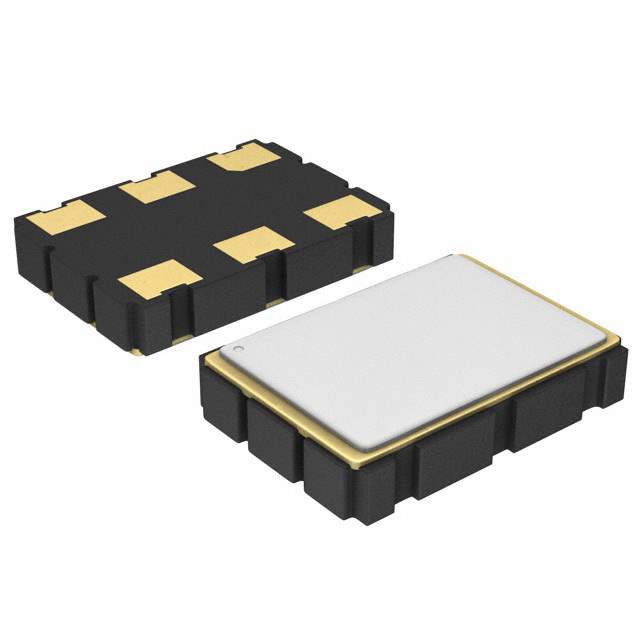

SG7050EBN 114.285000M-CJGA3 Real Image
Same model may have multiple batches, images only for reference.

SG7050EBN 114.285000M-CJGA3

Part No SG7050EBN 114.285000M-CJGA3
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 114.2850MHZ LVPECL / 114.285 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG7050EBN
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 114.285 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 75mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Current - Supply (Disable) (Max) 15µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SER4036TR,SER4036CT,SER4036DKR,833401,X1G004511001112,SG7050EBN114.285000M-CJGA3
Standard Package 250
Win Source Part Number 1092614-SG7050EBN 114.285000M-CJGA3
Ultra Librarian 3D Model Ultra Librarian SG7050EBN 114.285000M-CJGA3 CAD Model

Description

The SG7050EBN 114.285000M-CJGA3 is a crystal oscillator with a frequency of 114.285 MHz.

  • Type: standard XO type
  • Function: enable/disable
  • Output: LVPECL
  • Frequency Stability: ±50ppm
  • Voltage Supply: 3.3V
  • Mounting: 6-SMD, no lead package
  • Temperature Range: -40°C to 85°C
  • Product Status: obsolete
  • Alternative Parts: available, check cross-reference list
