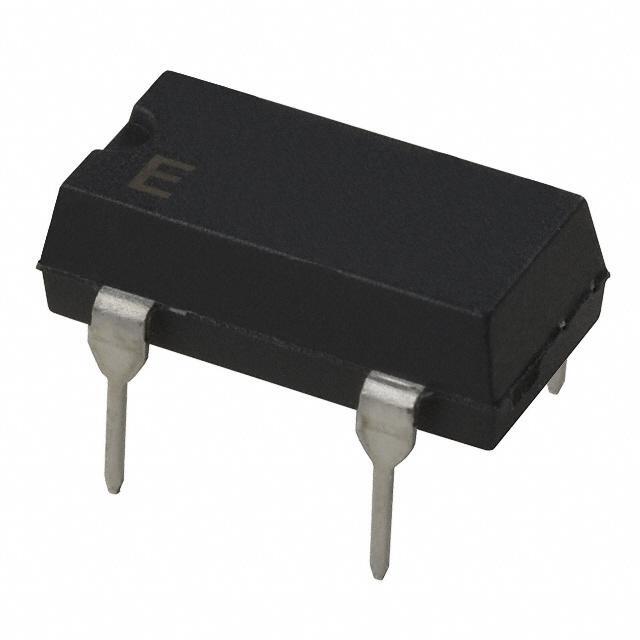

Same model may have multiple batches, images only for reference.
SG-531P 3.6864MC:ROHS Epson Company
Same model may have multiple batches, images only for reference.

SG-531P 3.6864MC:ROHS

Part No SG-531P 3.6864MC:ROHS
Manufacturer Epson Company
Catalog Oscillators
Description OSC XO 3.6864MHZ CMOS TTL PC PIN / Oscillator XO 3.6864MHz ±100ppm 50pF CMOS/TTL 60% 5V 4-Pin PDIP Thru-Hole Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer EPSON
Series SG-531
Packaging Tube
Type XO (Standard)
Frequency 3.6864MHz
Function Enable/Disable
Output CMOS, TTL
Operating Supply Voltage 5V
Frequency Stability ±100ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 23mA
Mounting Style Through Hole
Package 8-DIP, 4 Leads (Half Size)
Dimension 0.539" L x 0.260" W (13.70mm x 6.60mm)
Height - Seated (Maximum) 0.209" (5.30mm)
Current - Supply (Disable) (Maximum) 12mA
Popularity Medium
Supply and Demand Status Balance
Introduction Date March 21, 2000
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2026
Win Source Part Number 794176-SG-531P 3.6864MC:ROHS
Ultra Librarian 3D Model Ultra Librarian SG-531P 3.6864MC:ROHS CAD Model

Description

The EPSON SG-531 series XO (Standard) is a high-quality crystal oscillator designed for use in a wide range of electronic devices.

  • Frequency: 3.6864MHz
  • Frequency Stability: ±100ppm
  • Operating Temperature: -20°C to 70°C
  • Package: 8-DIP, 4 Leads (Half Size)
  • Function: Enable/Disable
  • Output: CMOS/TTL
  • Maximum Supply Current: 23mA
  • RoHS Compliance: Yes
  • Halogen-Free: Yes
  • Estimated EOL Date: 2026
