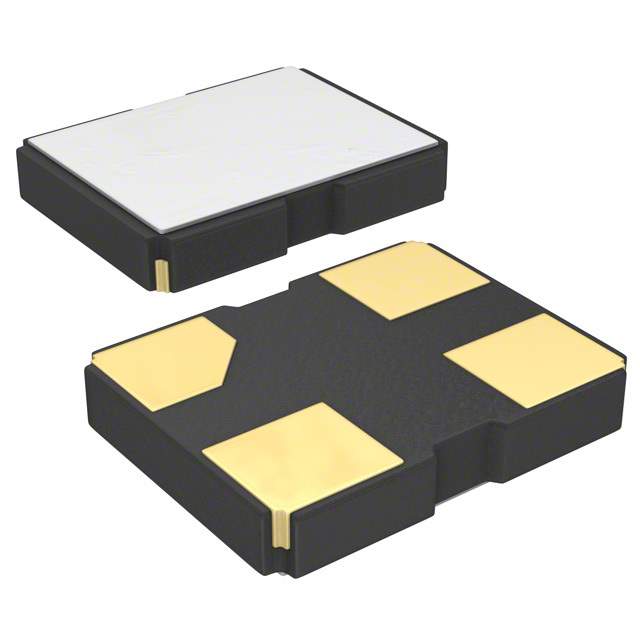

SG-210SED 75.0000ML0 Real Image
Same model may have multiple batches, images only for reference.

SG-210SED 75.0000ML0

Part No SG-210SED 75.0000ML0
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 75.0000MHZ CMOS SMD / 75 MHz XO (Standard) CMOS Oscillator 1.8V Standby (Power Down) 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-210S*D
Package Tape & Reel (TR)
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 75 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 6mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names SG-210SED 75.0000ML0-ND,SG-210SED75.0000ML0
Standard Package 1,000
Win Source Part Number 1092534-SG-210SED 75.0000ML0
Ultra Librarian 3D Model Ultra Librarian SG-210SED 75.0000ML0 CAD Model

Description

The SG-210S*D series XO (Standard) is a standby (power down) oscillator with a frequency of 75 MHz.

  • Frequency: 75 MHz
  • Output: CMOS
  • Frequency Stability: ±50ppm
  • Current Supply (Max): 6mA
  • Voltage Supply: 1.8V
  • Package/Case: 4-SMD, No Lead
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C ~ 85°C
  • Status: Obsolete
  • Manufacturer: EPSON
