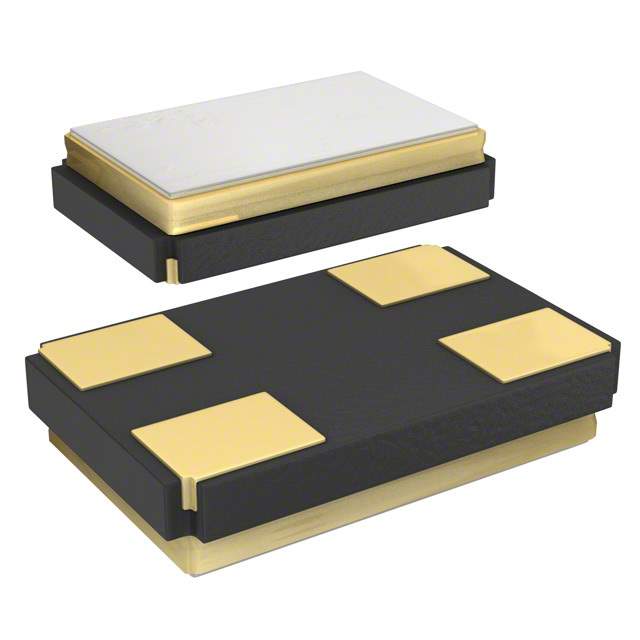

FA-238 24.0000MD-C0 Real Image
Same model may have multiple batches, images only for reference.

FA-238 24.0000MD-C0

Part No FA-238 24.0000MD-C0
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 24.0000MHZ 18PF SMD / 24 MHz ±30ppm Crystal 18pF 60 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr EPSON
Series FA-238
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names FA-238 24.0000MD-C0-ND,Q22FA23801194,FA-23824.0000MD-C0
Standard Package 1,000
Win Source Part Number 1058434-FA-238 24.0000MD-C0
Ultra Librarian 3D Model Ultra Librarian FA-238 24.0000MD-C0 CAD Model

Description

The FA-238 MHz Crystal is a high-quality component designed to operate at a frequency of 24 MHz.

  • Frequency: 24 MHz
  • Mounting Type: SMD (SMT)
  • Load Capacitance: 18pF
  • ESR (Equivalent Series Resistance): 60 Ohms
  • Frequency Tolerance: ±30ppm
  • Operating Mode: Fundamental
  • Package/Case: 4-SMD, No Lead
  • Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Temperature Range: -20°C ~ 70°C
