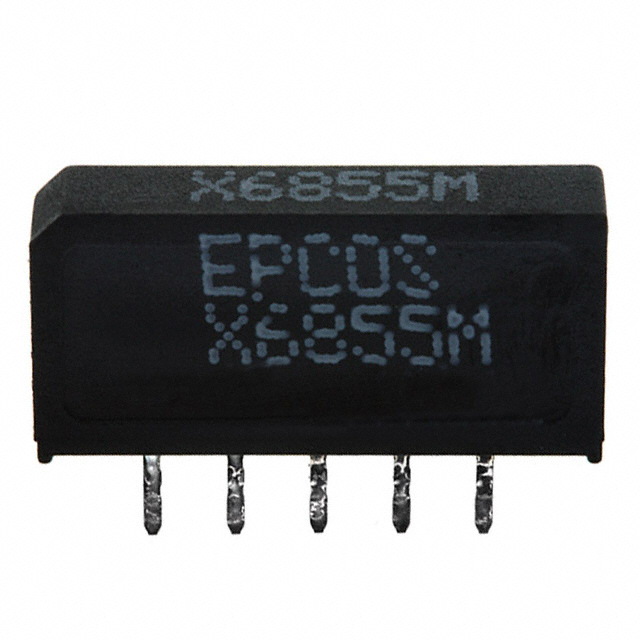

Same model may have multiple batches, images only for reference.

X6855M

Name: X6855M
Brand: EPCOS (TDK)
SKU: 404024
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	X6855M
Manufacturer	EPCOS (TDK)
Catalog	SAW Filters
Description	FILTER SAW BANDPASS 44MHZ
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	EPCOS (TDK)
Packaging	Bulk
Status	Obsolete(EOL)
Frequency - Center	44MHz
Bandwidth	8MHz
Insertion Loss	16.2dB
Applications	Base Stations
Mounting	Through Hole
Height (Max)	0.343" (8.70mm)
Dimension	0.681" L x 0.154" W (17.30mm x 3.90mm)
Win Source Part Number	214014-X6855M
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian X6855M CAD Model

Description

This filter from EPCOS (TDK) is designed for use in base stations.

Frequency Center: 44MHz
Bandwidth: 8MHz
Mounting Style: Through Hole
Dimensions: 0.681" L x 0.154" W (17.30mm x 3.90mm)
Insertion Loss: 16.2dB
Height: 0.343" (8.70mm)
Packaging: Bulk
Popularity: Medium
