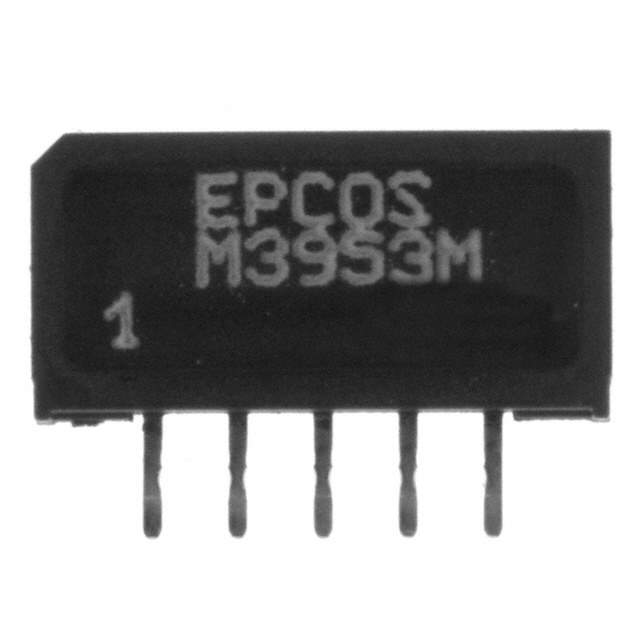

Same model may have multiple batches, images only for reference.

M3953M

Name: M3953M
Brand: EPCOS (TDK)
SKU: 202631
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	M3953M
Manufacturer	EPCOS (TDK)
Catalog	SAW Filters
Description	FILTER SAW IF 45.75MHZ 5-SIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	EPCOS (TDK)
Packaging	Bulk
Status	Obsolete(EOL)
Frequency - Center	45.75MHz
Insertion Loss	12.7dB
Applications	TV
Mounting	Through Hole
Height (Max)	0.343" (8.70mm)
Dimension	0.681" L x 0.154" W (17.30mm x 3.90mm)
Win Source Part Number	207116-M3953M
Ultra Librarian 3D Model	Ultra Librarian M3953M CAD Model

Description

The EPCOS (TDK) 207116-M3953M is a through-hole filter designed for TV applications.

Bandwidth: -
Frequency Center: 45.75MHz
Insertion Loss: 12.7dB
Height (max): 0.343" (8.70mm)
Dimensions: 0.681" L x 0.154" W (17.30mm x 3.90mm)
Status: Obsolete (EOL)
Packaging: Bulk
