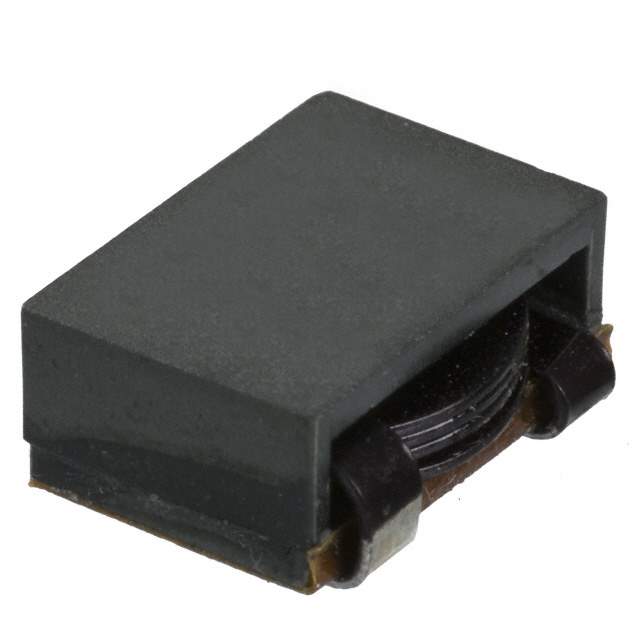

B82559A0501A013 Real Image
Same model may have multiple batches, images only for reference.

B82559A0501A013

Part No B82559A0501A013
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 500NH 30A 0.78MOHM SMD / 500 nH Shielded Drum Core, Wirewound Inductor 30 A 0.78mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series ERU13 - Flat Wire Inductor
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 500 nH
Tolerance ±10%
Current Rating (Amps) 30 A
Current - Saturation (Isat) 30A
Shielding Shielded
DC Resistance (DCR) 0.78mOhm
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 10 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" L x 0.421" W (13.00mm x 10.70mm)
Height - Seated (Max) 0.195" (4.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 495-1866-1,495-1866-2,B82559A501A13,-495-1866-1-ND,495-1866-6,-495-1866-1,B82559A 501A 13,-B82559A501A13
Standard Package 750
Win Source Part Number 1030362-B82559A0501A013
Ultra Librarian 3D Model Ultra Librarian B82559A0501A013 CAD Model

Description

The B82559A0501A013 is a flat wire inductor that belongs to the ERU13 series of fixed inductors.

  • Series: ERU13
  • Type: Flat wire inductor
  • Component: Inductor, coils, and chokes
  • Win Source part number: 1030362
  • Shielding: Shielded
  • Type: Drum core, wirewound
  • Material: Ferrite
  • Tolerance: +/- 10%
  • Inductance: 500 nH
  • DC Resistance: 0.78mOhm
  • Height: 0.195" (4.95mm) when seated
  • Standard Package: 750
  • Operating Temperature Range: -40°C to 130°C
