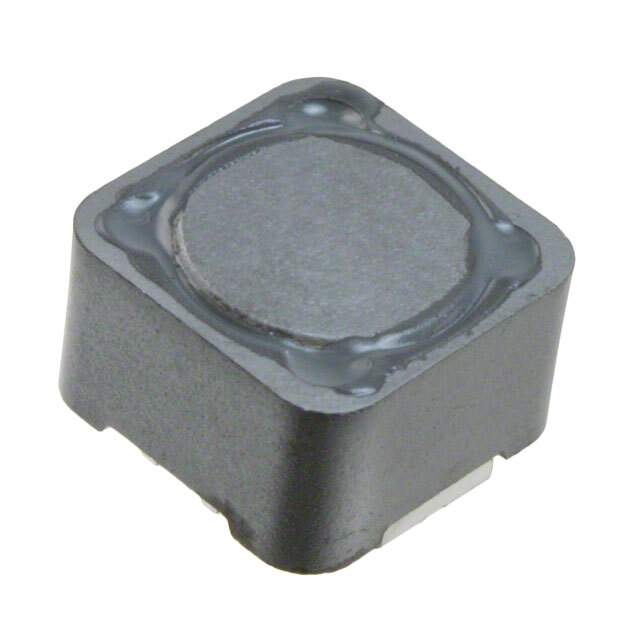

B82477G4224M Real Image
Same model may have multiple batches, images only for reference.

B82477G4224M

Part No B82477G4224M
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 220UH 1.16A 380 MOHM
Datasheet
B82477G4224M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±20%
Current Rating 1.16A
Current - Saturation 1.35A
DC Resistance (DCR) 380 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.236" (6.00mm)
Win Source Part Number 000149-B82477G4224M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82477G4224M CAD Model

Description

Overview

The B82477G4224M is an advanced inductor engineered for specialty applications. Its unique characteristics make it an ideal choice for projects that demand high stability and electromagnetic compatibility.

Applications

  • Renewable Energy Systems
  • Military Communications
  • High-Frequency Signal Processing
  • Advanced Computing

Features and Benefits

  • High Stability: Maintains performance over a wide frequency range.
  • Enhanced EMI Suppression: Minimizes electromagnetic interference effectively.
  • Compact and Lightweight: Facilitates easy integration into existing systems.
  • Long Service Life: Ensures reliability and longevity.
