Same model may have multiple batches, images only for reference.

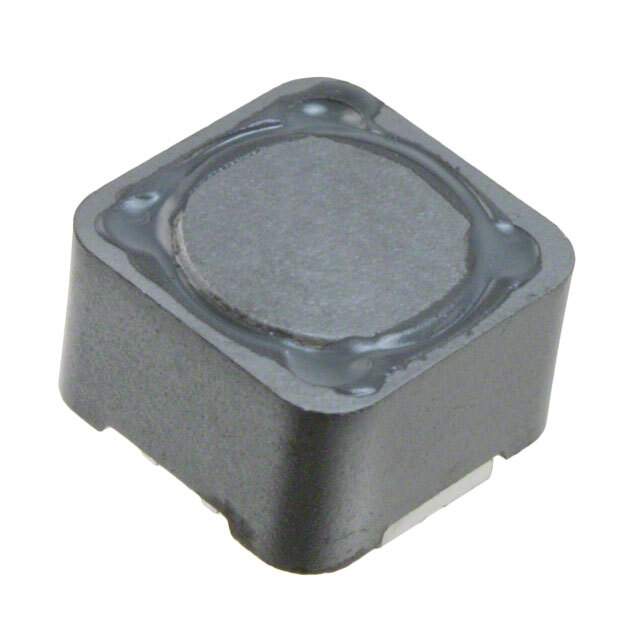

B82477G4223M000 Real Image
Same model may have multiple batches, images only for reference.

B82477G4223M000

Part No B82477G4223M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 22UH 3.6A 38 MOHM SMD
Datasheet
B82477G4223M000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 3.6A
Current - Saturation 4.25A
DC Resistance (DCR) 38 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.236" (6.00mm)
Win Source Part Number 200235-B82477G4223M000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B82477G4223M000 CAD Model

Description

Overview

The B82477G4223M000 is a premium-grade inductor designed for applications requiring high precision and reliability. It excels in environments where stable inductance and minimal losses are crucial to operational success.

Applications

  • Medical Equipment
  • Satellite Communication
  • Electric Vehicles
  • Aerospace Systems

Features and Benefits

  • High Precision: Guarantees consistent performance with minimal deviation.
  • Superior Inductive Properties: Maximizes energy efficiency and storage.
  • Durability: Built to resist shocks and vibrations.
  • Temperature Resilience: Performs reliably in extreme conditions.
