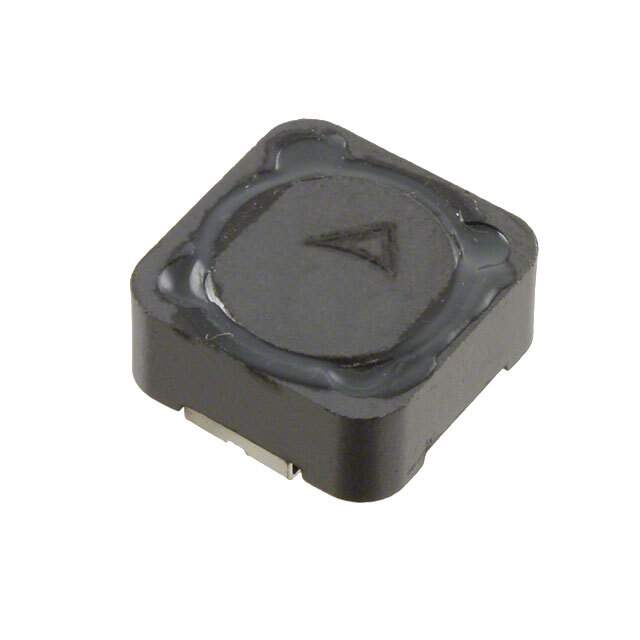

Same model may have multiple batches, images only for reference.

B82477G2104M000

Name: B82477G2104M000
Brand: EPCOS (TDK)
SKU: 1315184
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B82477G2104M000
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	EPCOS - TDK Electronics
Series	B82477G2
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±20%
Current Rating (Amps)	1.3 A
Shielding	Shielded
DC Resistance (DCR)	160mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.484" L x 0.484" W (12.30mm x 12.30mm)
Height - Seated (Max)	0.236" (6.00mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1315184-B82477G2104M000
Ultra Librarian 3D Model	Ultra Librarian B82477G2104M000 CAD Model

Alternative Products

Description

The B82477G2104M000 electronic component is a fixed inductor manufactured by EPCOS (TDK).

Series: B82477G2
Core Type: drum core, wirewound type
Package: tape and reel
Shielded: Yes
Inductance: 100 microhenries
Tolerance: +/-20 percent
Operating Temperature Range: -55 degrees Celsius to 125 degrees Celsius
DC Resistance: 160 milliohms max
Current Rating: 1.3A
