Same model may have multiple batches, images only for reference.

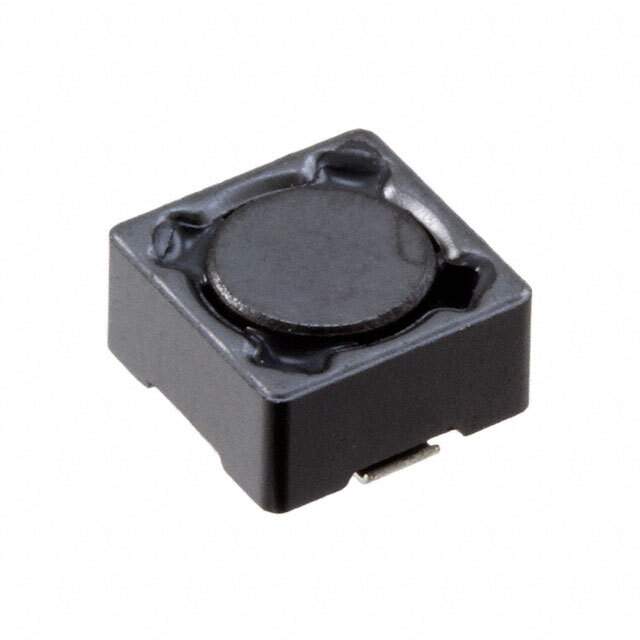

B82472G6334M Real Image
Same model may have multiple batches, images only for reference.

B82472G6334M

Part No B82472G6334M
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 330uH 20% 100KHz Ferrite 0.33A 1.7Ohm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Nonstandard
Composition Wirewound
Core Material Ferrite
Current Rating 330 mA
DC Current 330 mA
DC Resistance (DCR) 1.7 Ω
Depth 7.5 mm
Height 4.5 mm
Height - Seated (Max) 3.5052 mm
Inductance 330 µH
Length 7.2898 mm
Max DC Current 310 mA
Military Standard Not
Mount Surface Mount
Radiation Hardening No
RoHS Compliant
Saturation Current 300 mA
Schedule B 8504500000, 8504500000
Shielding Shielded
Test Frequency 100 kHz
Tolerance 20 %
Width 7.2898 mm
Win Source Part Number 1018658-B82472G6334M
Categories Fixed Inductors
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82472G6334M CAD Model

Description

The B82472G6334M from EPCOS (TDK) is a shielded fixed inductor that comes in a Digi-Reel® packaging.

  • Length: 7.2898 mm
  • Height (max): 3.5052 mm
  • Width: 7.2898 mm
  • Inductance: 330 µH
  • DC Current: 330 mA
  • Mounting Technology: SMD (SMT)
  • Tolerance: 20 %
  • Product Status: Shortage
  • Alternative Parts: CLF7045T-331M-CA, SRR7045-331M, SLF7045T-331MR25-PF, SRR0745A-331M, ASPI-6045S-331M-T, and ASPI-0403S-331M-TB82472-G6334-M.
