Same model may have multiple batches, images only for reference.

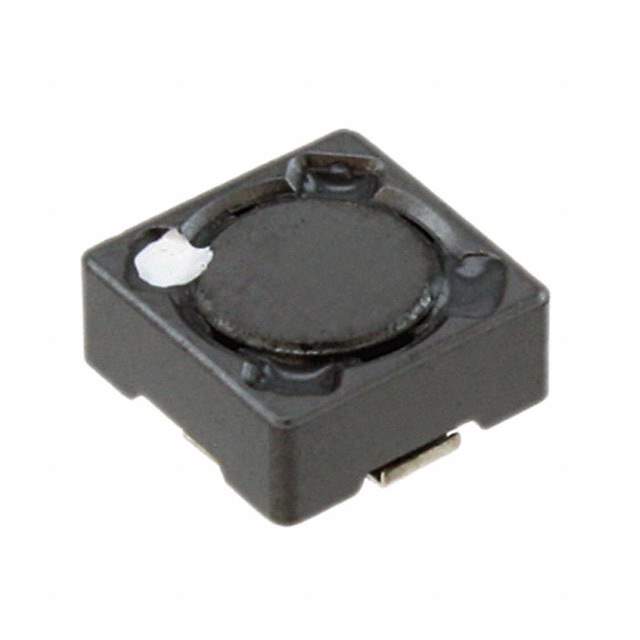

B82472G4102M000 Real Image
Same model may have multiple batches, images only for reference.

B82472G4102M000

Part No B82472G4102M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 1UH 3.45A 18 MOHM SMD / 1 µH Shielded Drum Core, Wirewound Inductor 3.45 A 18mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer EPCOS - TDK Electronics
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.45 A
Current - Saturation (Isat) 2.9A
Shielding Shielded
DC Resistance (DCR) 18mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.138" (3.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 495-1811-1,495-1811-2,495-1811-6,-B82472G4102M,-495-1811-1-ND,B82472G4102M,-495-1811-1
Standard Package 1,000
Win Source Part Number 1327434-B82472G4102M000
Ultra Librarian 3D Model Ultra Librarian B82472G4102M000 CAD Model

Description

This fixed inductor is a drum core, wirewound type with a ferrite core material.

  • Inductance: 1µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 18mOhm Max
  • Package Dimensions: 0.287" L x 0.287" W (7.30mm x 7.30mm)
  • Height Seated: 0.138" (3.50mm)
  • Package: Reel - TR
  • Standard Package: 1000
  • Mounting Type: Surface Mount
  • Current Rating: 3.45A
  • Inductance Frequency - Test: 100kHz
  • Temperature Range: -55°C to 125°C
