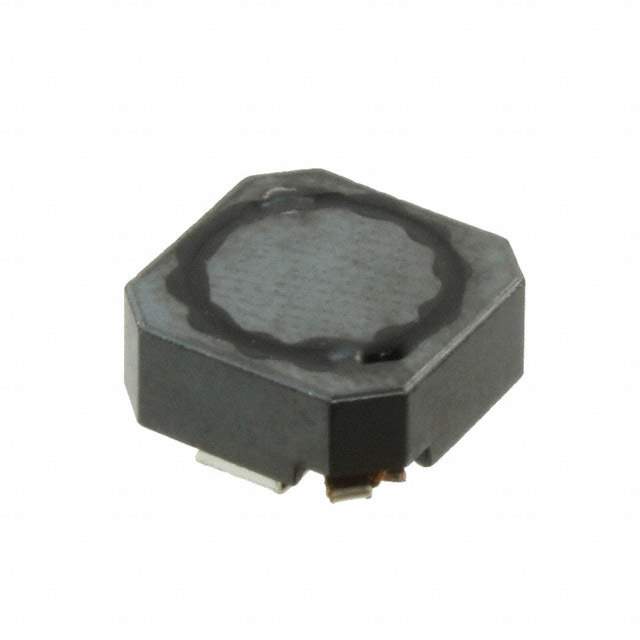

Same model may have multiple batches, images only for reference.

B82464G4683M000

Name: B82464G4683M000
Brand: EPCOS (TDK)
SKU: 982613
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B82464G4683M000
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Description	FIXED IND 68UH 1.3A 130 MOHM SMD / 68 µH Shielded Drum Core, Wirewound Inductor 1.3 A 130mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	EPCOS - TDK Electronics
Series	B82464G4
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±20%
Current Rating (Amps)	1.3 A
Current - Saturation (Isat)	1.45A
Shielding	Shielded
DC Resistance (DCR)	130mOhm Max
Frequency - Self Resonant	8MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max)	0.189" (4.80mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	-B82464G4683M,-495-1809-1-ND,495-1809-6,495-1809-2,-495-1809-1,495-1809-1,B82464G4683M
Standard Package	750
Win Source Part Number	982613-B82464G4683M000
Ultra Librarian 3D Model	Ultra Librarian B82464G4683M000 CAD Model

Alternative Products

Description

The EPCOS (TDK) B82464G4683M000 is a fixed inductor with an inductance of 68 µH and a tolerance of ±20%.

Inductance: 68 µH
Tolerance: ±20%
DC Resistance: 130mOhm Max
Frequency of Self-Resonant: 8MHz
Core: Drum Core
Type: Wirewound
RoHS Compliant: Yes
Core Material: Ferrite
Shielding: Shielded
Mounting Style: Surface Mount
Package: Tape and Reel
Height: 4.8 mm
Width: 10.4 mm
Length: 0.409 inches
Application: Fixed Inductor
AEC-Q200 Rated: Yes
Supply and Demand Status: Shortage
