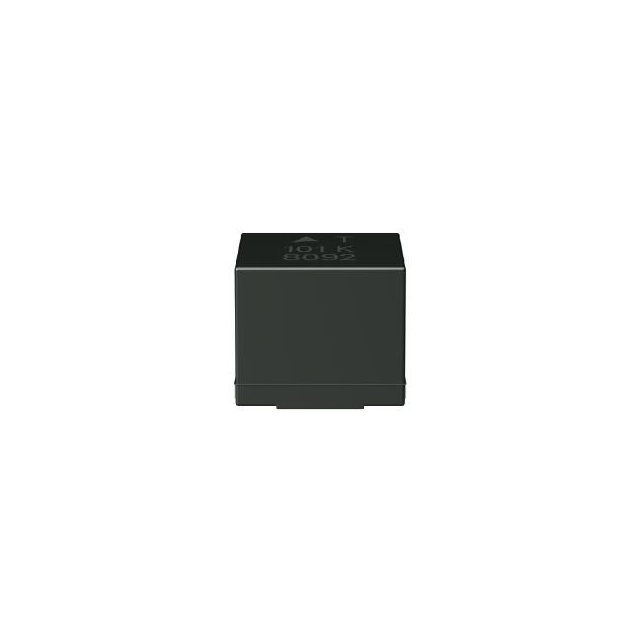

B82442T1223K000 EPCOS - TDK Electronics
Same model may have multiple batches, images only for reference.

B82442T1223K000

Part No B82442T1223K000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 22UH 1.04A 238MOHM SMD
Datasheet
B82442T1223K000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308851-B82442T1223K000
Category Inductors, Coils, Chokes >Fixed Inductors
Mfr EPCOS - TDK Electronics
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±10%
Current Rating (Amps) 1.04 A
Current - Saturation (Isat) 2.05A
Ultra Librarian 3D Model Ultra Librarian B82442T1223K000 CAD Model

Description

  • Temperature range up to +150°C
  • Very high current handling capability
  • High L values
  • Qualified to AEC-Q200
  • Suitable for lead-free reflow solderingas referenced in JEDEC J-STD 020D
  • RoHS-compatible
  • Halogen-free
