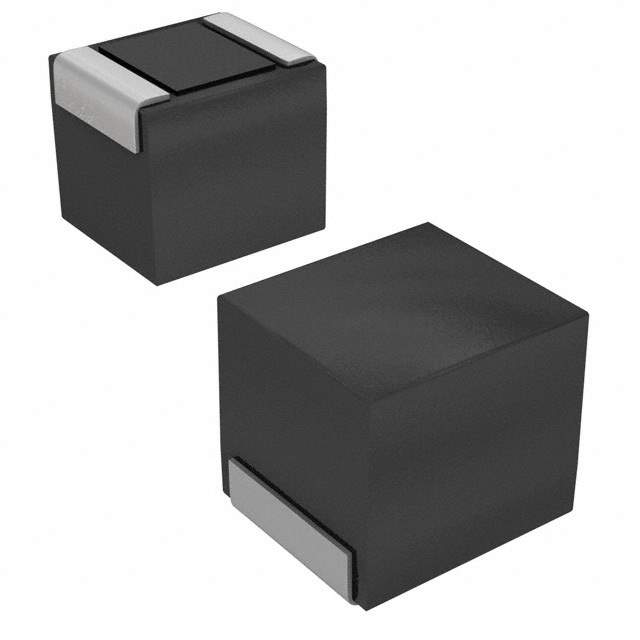

B82442T1105K50 Real Image
Same model may have multiple batches, images only for reference.

B82442T1105K50

Part No B82442T1105K50
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description Ind General Purpose Chip Molded Wirewound 1mH 10% 252KHz 30Q-Factor Ferrite 150mA 2220 Blister T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 2220
Case Code (Imperial) 2220
Case / Package 5650
Composition Wirewound
Core Material Ferrite
Current Rating 150 mA
DC Current 150 mA
DC Resistance (DCR) 9.5 Ω
Depth 5.3 mm
Height 5.3 mm
Height - Seated (Max) 5.3086 mm
Inductance 1 mH
Length 5.6134 mm
Max DC Current 150 mA
Military Standard Not
Mount Surface Mount
Number of Pins 2
Packaging Tape & Reel (TR)
Radiation Hardening No
RoHS Compliant
Saturation Current 246 mA
Schedule B 8504500000
Self Resonant Frequency 1.8 MHz
Shielding Unshielded
Test Frequency 252 kHz
Tolerance 10 %
Width 5.0038 mm
Win Source Part Number 988481-B82442T1105K50
Categories Fixed Inductors
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82442T1105K50 CAD Model

Description

The EPCOS (TDK) Fixed Inductors Electronic Component is a wirewound composition component that has a maximum DC current rating of 150 mA.

  • Maximum DC Current Rating: 150 mA
  • Length: 5.6134 mm
  • Width: 5.0038 mm
  • Height: 5.3 mm
  • Case/Package: 2220
  • Mounting: SMD (SMT)
  • Total Pins: 2
  • Tolerance: 10 percent
  • RoHS Compliant: Yes
  • Popularity: Low
