Same model may have multiple batches, images only for reference.

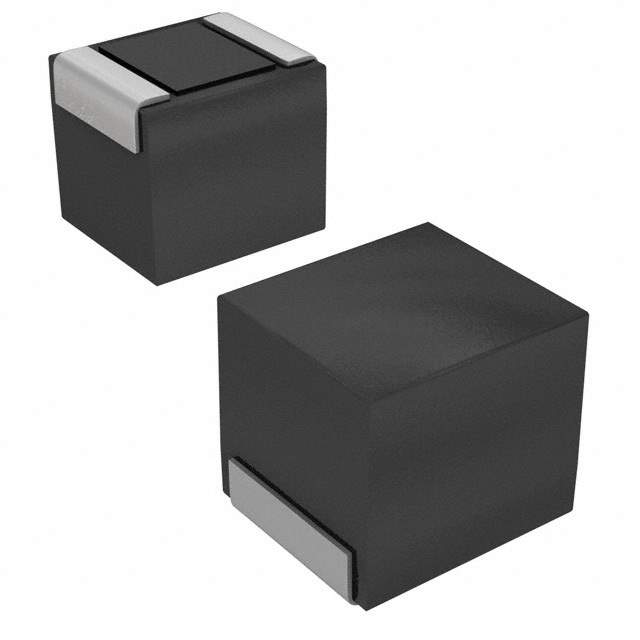

B82442T1102M050 Real Image
Same model may have multiple batches, images only for reference.

B82442T1102M050

Part No B82442T1102M050
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 1UH 3.51A 25 MOHM SMD / Inductor General Purpose Chip Molded Wirewound 1uH 20% 7.96MHz 15Q-Factor Ferrite 3.51A 0.025Ohm DCR 2220 Automotive T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Series SIMID
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±20%
Current Rating 3.51A
Current - Saturation 7.33A
Shielding Unshielded
DC Resistance (DCR) 25 mOhm Max
Q @ Freq 15 @ 7.96MHz
Frequency - Self Resonant 111MHz
Ratings AEC-Q200
Operating Temperature Range -55°C ~ 125°C
Test Frequency 7.96MHz
Mounting SMD
Package 2-SMD, J-Lead
Dimension 0.220" L x 0.197" W (5.60mm x 5.00mm)
Height - Seated (Maximum) 0.209" (5.30mm)
Win Source Part Number 796012-B82442T1102M050
Popularity Medium
Supply and Demand Status Limited
Family Name B82442T
Introduction Date March 31, 2008
ECCN EAR99
Country of Origin China, Germany, Hungary
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian B82442T1102M050 CAD Model

Description

The EPCOS (TDK) B82442T1102M050 is a wirewound inductor with an inductance of 1μH and a current rating of 3.51A.

  • Tolerance: ±20%
  • DC Resistance (DCR): 25 mOhm max
  • Shielding: Unshielded
  • Core Material: Ferrite
  • Current Saturation: 7.33A
  • Q @ Freq: 15 @ 7.96MHz
  • Self-Resonant Frequency: 111MHz
  • Test Frequency: 7.96MHz
  • Mounting: SMD
  • AEC-Q200: Yes
  • Dimensions: 0.220" L x 0.197" W (5.60mm x 5.00mm)
  • Height: 0.209" (5.30mm)
  • Supply and Demand Status: Limited
