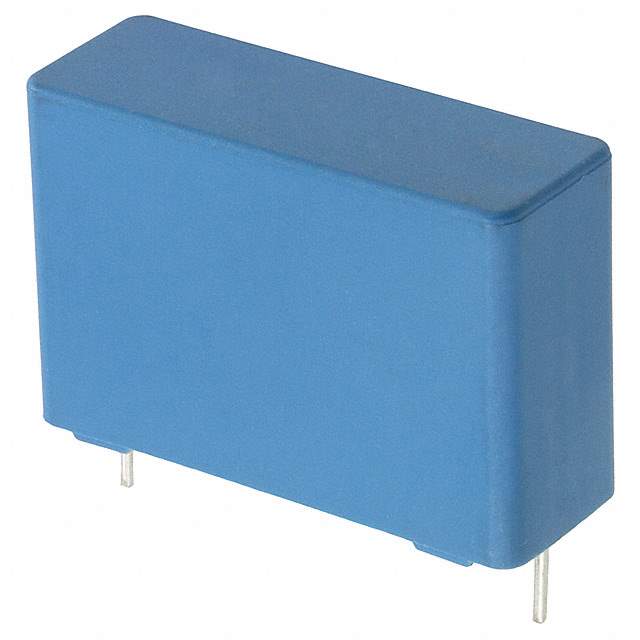

Same model may have multiple batches, images only for reference.

B32774D0205K000

Name: B32774D0205K000
Brand: EPCOS (TDK)
SKU: 1147254
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B32774D0205K000
Manufacturer	EPCOS (TDK)
Catalog	Film Capacitors
Description	CAP FILM 2UF 10% 1.1KVDC RADIAL / 2 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Film Capacitors
Mfr	EPCOS - TDK Electronics
Series	B3277* - MKP DC-Link
Package	Bulk
Capacitance	2 µF
Tolerance	±10%
Voltage Rating - DC	1100V (1.1kV)
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	26.3 mOhms
Temperature Range - Operating	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Dimension	1.240" L x 0.492" W (31.50mm x 12.50mm)
Height - Seated (Max)	0.846" (21.50mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	DC Link, DC Filtering
Features	Long Life
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.25.0070
Other Names	B32774D0205K,495-4830-ND,B32774D 205K,495-4482,B32774D205K-ND,B32774D205K,495-4830
Standard Package	525
Win Source Part Number	1147254-B32774D0205K000
Ultra Librarian 3D Model	Ultra Librarian B32774D0205K000 CAD Model

Alternative Products

Description

The B3277* - MKP DC-Link is a capacitor that belongs to the film capacitors category.

Capacitance: 2 µF
Tolerance: ±10%
Voltage Rating - DC: 1100V (1.1kV)
Dielectric Material: Polypropylene (PP), Metallized
Mounting Type: Through-Hole
Package/Case: Radial
Operating Temperature: -40°C ~ 105°C
Height (Seated): 0.846" (21.50mm)
