Same model may have multiple batches, images only for reference.

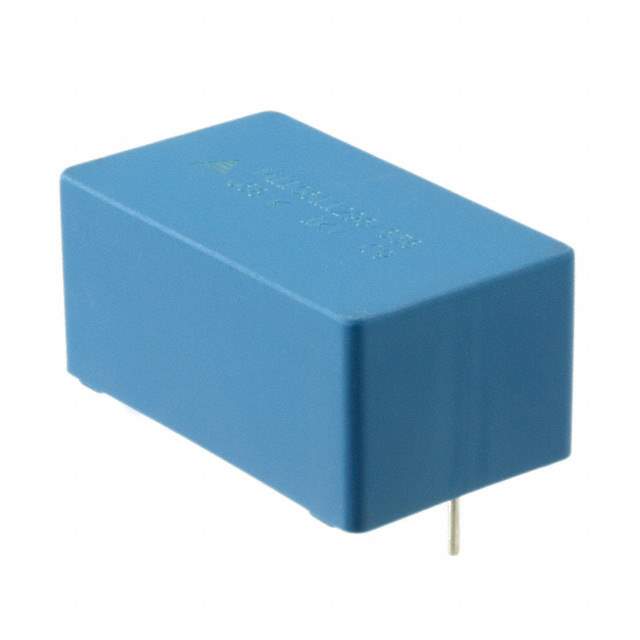

B32656T684K Real Image
Same model may have multiple batches, images only for reference.

B32656T684K

Part No B32656T684K
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.68UF 10% 1KVDC RADIAL
Datasheet
B32656T684K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 0.68μF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Dimension 1.634" L x 0.945" W (41.50mm x 24.00mm)
Height - Seated (Max) 0.748" (19.00mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications DC Link, DC Filtering; High Pulse, DV/DT
Win Source Part Number 199738-B32656T684K
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32656T684K CAD Model

Description

Product Overview

The B32656T684K is a high-performance metallized film capacitor, designed to deliver reliability and efficiency in electronic circuits. This capacitor is ideal for applications requiring stable capacitance over time and varying environmental conditions.

Features and Benefits

  • Highly reliable with long life expectancy
  • Superior temperature stability
  • Low self-inductance
  • High ripple current capability

Applications

  • Switch-mode power supplies (SMPS)
  • DC-Link circuits
  • Filter circuits
  • Industrial electronics
