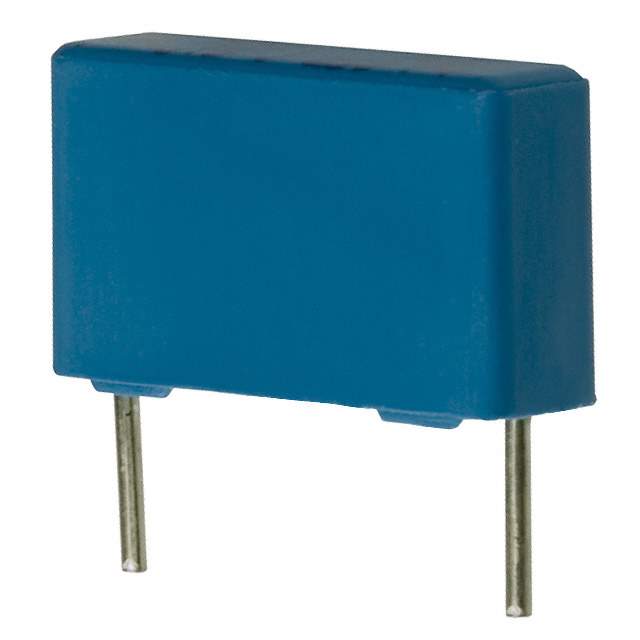

B32652A2562K000 Real Image
Same model may have multiple batches, images only for reference.

B32652A2562K000

Part No B32652A2562K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 5600PF 10% 2KVDC RADIAL
Datasheet
B32652A2562K000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Series B32652
Packaging Bulk
Capacitance 5600pF
Tolerance ±10%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package Radial
Dimension 0.709" L x 0.354" W (18.00mm x 9.00mm)
Height - Seated (Maximum) 0.295" (7.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications DC Link, DC Filtering; High Pulse, DV/DT
Win Source Part Number 766671-B32652A2562K000
Popularity Medium
Supply and Demand Status Balance
Family Name B32652
Introduction Date June 25, 2001
ECCN EAR99
Country of Origin Brazil
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian B32652A2562K000 CAD Model

Description

The EPCOS B32652A2562K000 is a radial packaged capacitor with a capacitance of 5600pF and a voltage rating of 700V AC and 2000V DC.

  • Series: B32652
  • Capacitance: 5600pF
  • Voltage Rating AC: 700V
  • Voltage Rating DC: 2000V
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Style: Through Hole
  • Termination: PC Pins
  • Applications: DC Link, DC Filtering, High Pulse, DV/DT
  • Compliance: Halogen-Free
  • Lead Spacing: 0.591 inches (15.00mm)
