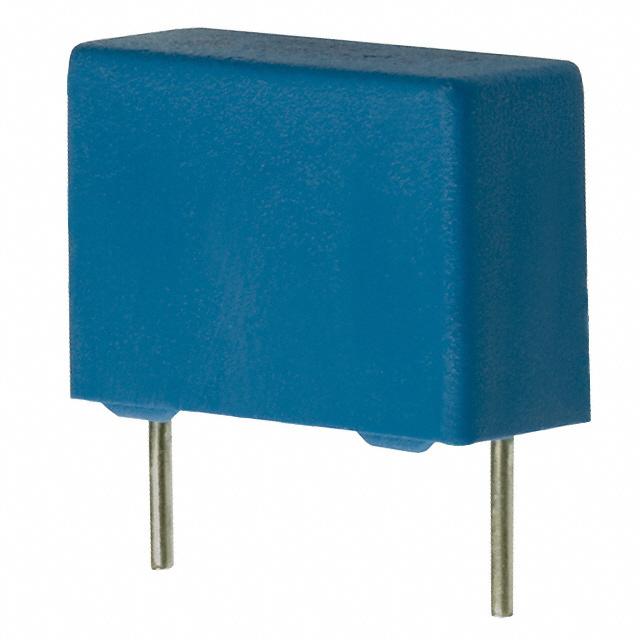

Same model may have multiple batches, images only for reference.
B32652A1682J EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32652A1682J

Part No B32652A1682J
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 6800PF 5% 1.6KVDC RAD
Datasheet
B32652A1682J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 6800pF
Tolerance ±5%
Voltage Rating - AC 500V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Dimension 0.709" L x 0.276" W (18.00mm x 7.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications DC Link, DC Filtering; High Pulse, DV/DT
Win Source Part Number 000023-B32652A1682J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32652A1682J CAD Model

Description

B32652A1682J Capacitor

The B32652A1682J is a high-quality metallized polypropylene film capacitor known for its reliable performance in various electronic applications. Designed for durability and efficiency, it offers excellent electrical characteristics, making it suitable for a wide range of circuits.

  • Applications:
    • Switch-mode power supplies
    • Lighting ballasts
    • Telecommunications equipment
  • Features and Benefits:
    • High capacitance stability
    • Low dielectric absorption
    • Excellent self-healing properties
  • Additional Details: Compact design with a wide operating temperature range, ideal for high-frequency applications.
