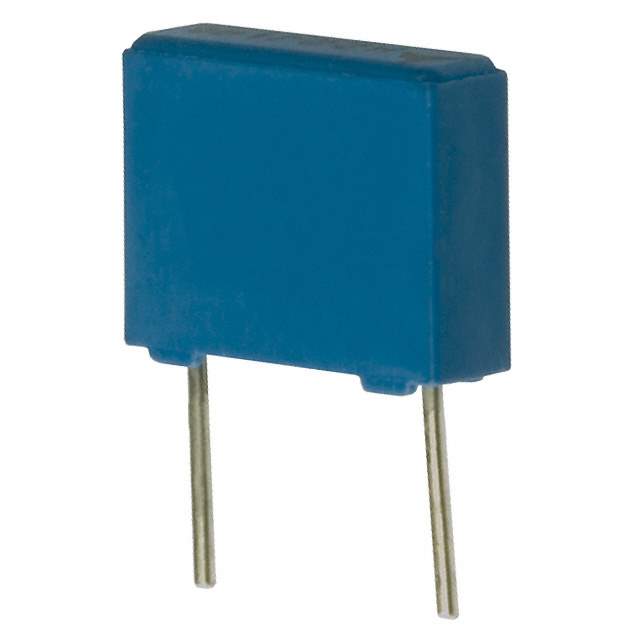

B32620A6222J289 Real Image
Same model may have multiple batches, images only for reference.

B32620A6222J289

Part No B32620A6222J289
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 2200PF 5% 630VDC RADIAL
Datasheet
B32620A6222J289 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging AMMO PACKAGE
Status Active
Capacitance 2200pF
Tolerance ±5%
Voltage Rating - AC 400V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Max) 0.335" (8.50mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications High Pulse, DV/DT
Win Source Part Number 101823-B32620A6222J289
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32620A6222J289 CAD Model

Description

Product Features and Benefits

  • High Capacitance: 2.2 μF
  • Voltage Rating: 250 VDC
  • Excellent Frequency Response
  • Compact for Easy Circuit Design
  • Robust and Long-Lasting

The B32620A6222J289 capacitor delivers exceptional performance in varying temperature conditions, making it ideal for applications requiring consistent reliability and efficiency.

Applications

  • Inverter Circuits
  • Lighting Applications
  • AC/DC Motor Controllers
  • Electronic Measurement Equipment
  • Power Distribution Systems
