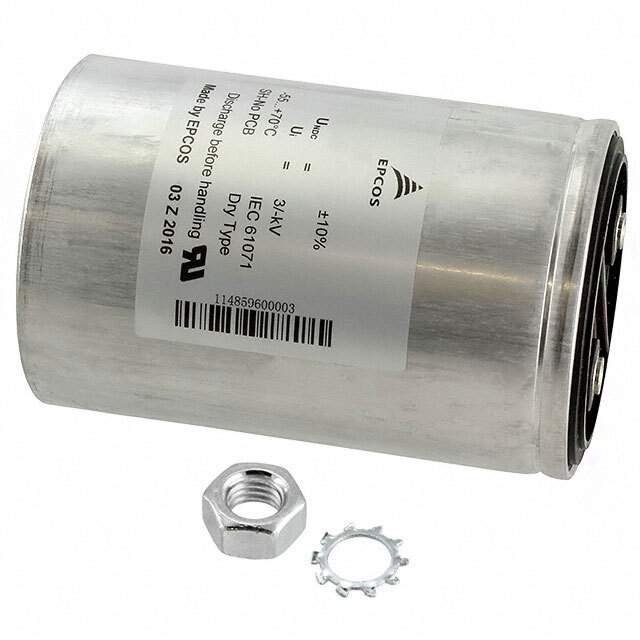

B25620B1707K103 Real Image
Same model may have multiple batches, images only for reference.

B25620B1707K103

Part No B25620B1707K103
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 700UF 10% 1.1KVDC SCREW
Datasheet
B25620B1707K103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 700μF
Tolerance ±10%
Voltage Rating - DC 1100V (1.1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR 1.8 mOhm
Temperature Range - Operating -55°C to 75°C
Mounting Chassis Mount
Dimension 4.567" Dia (116.00mm)
Height - Seated (Max) 5.512" (140.00mm)
Termination Screw Terminals
Lead Spacing 1.969" (50.00mm)
Applications DC Link, DC Filtering
Win Source Part Number 1021401-B25620B1707K103
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B25620B1707K103 CAD Model

Description

The 1021401-B25620B1707K103 capacitor is a bulk packaged, screw terminal capacitor with a capacitance of 700μF and a voltage rating of 1100V (1.1kV) from EPCOS (TDK).

  • Capacitance: 700μF
  • Voltage Rating: 1100V (1.1kV)
  • Application: DC link and DC filtering
  • Dielectric Material: Polypropylene (PP), Metallized
  • ESR: 1.8 mOhm
  • Tolerance: ±10%
  • Lead Spacing: 1.969" (50.00mm)
  • Height: 5.512" (140.00mm)
  • Diameter: 4.567" (116.00mm)
  • Operating Temperature Range: -55°C to 75°C
