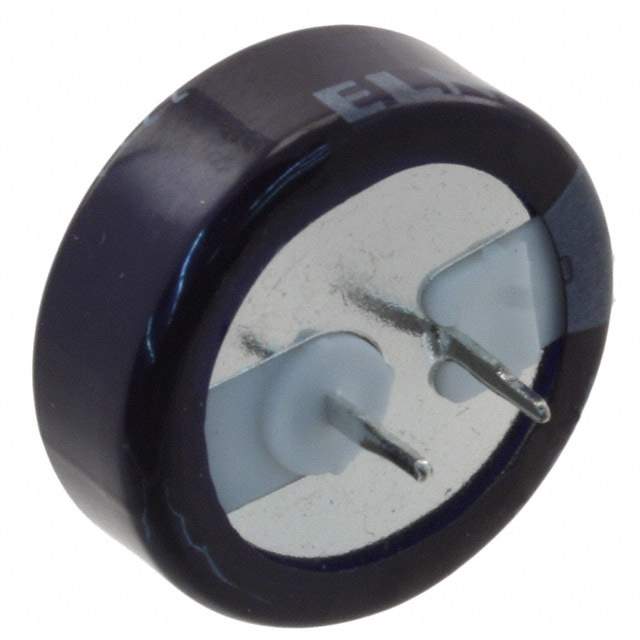

RSCB11055R5L08015T Real Image
Same model may have multiple batches, images only for reference.

RSCB11055R5L08015T

Part No RSCB11055R5L08015T
Manufacturer Elna America
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 1F -20% +80% 5.5V T/H / 1 F (EDLC) Supercapacitor 5.5 V Radial, Can 30Ohm @ 1kHz 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Elna America
Series DB
Package Bulk
Capacitance 1 F
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 30Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.846" Dia (21.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Temperature Range - Operating -25°C ~ 70°C
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1338391-RSCB11055R5L08015T
Ultra Librarian 3D Model Ultra Librarian RSCB11055R5L08015T CAD Model

Description

The Elna America 1338391-RSCB11055R5L08015T is a capacitor that is part of the DB series.

  • Manufacturer: Elna America
  • Product: 1338391-RSCB11055R5L08015T
  • Series: DB
  • Capacitance: 1 F
  • Voltage Rating: 5.5 V
  • Mounting Type: Through-hole
  • Standard Package: 100
  • Package/Case: Radial can
  • Tolerance: -20%, +80%
  • ESR: 30Ohm @ 1kHz
  • Application: Electric double layer capacitors (EDLC) and supercapacitors
  • Lifetime: 1000 Hrs @ 70°C
  • Operating Temperature: -25°C ~ 70°C
