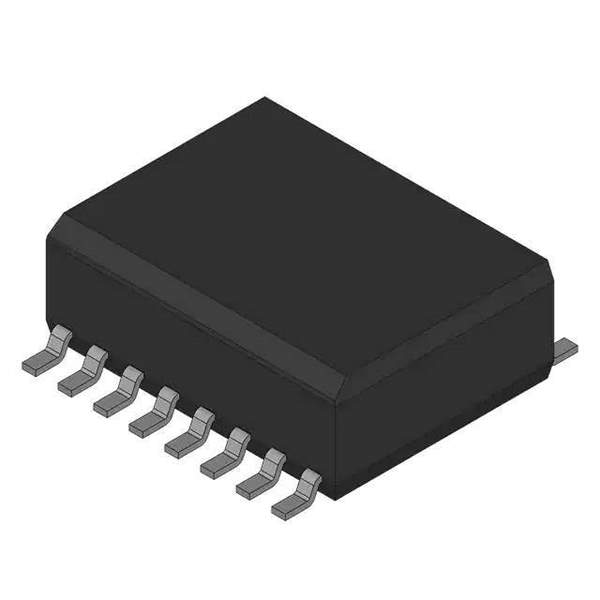

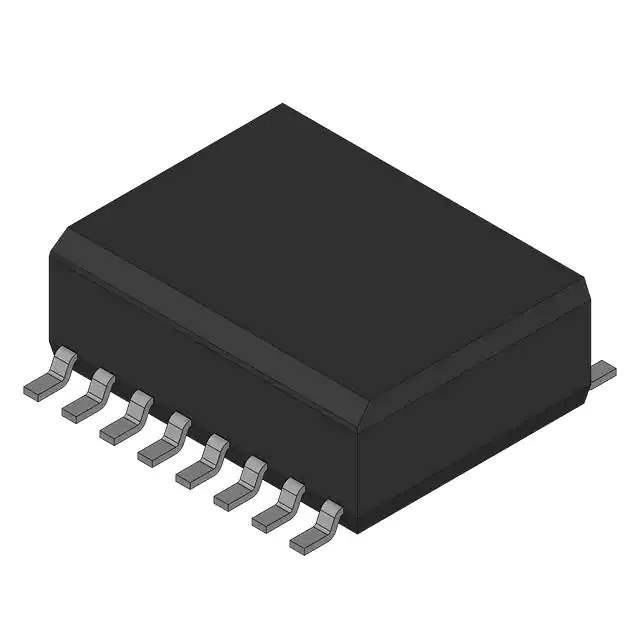

EL5393ACS Real Image
Same model may have multiple batches, images only for reference.

EL5393ACS

Part No EL5393ACS
Manufacturer Elantec
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP CFA 3 CIRCUIT 16SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr Elantec
Series EL5393A
Package Bulk
Product Status Obsolete
Amplifier Type Current Feedback
Number of Circuits 3
Slew Rate 2200V/µs
-3db Bandwidth 300 MHz
Current - Input Bias 1 µA
Voltage - Input Offset 1 mV
Current - Supply 4mA (x3 Channels)
Current - Output / Channel 120 mA
Voltage - Supply Span (Min) 5 V
Voltage - Supply Span (Max) 10 V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Standard Package 1 pcs
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 588687-EL5393ACS
Ultra Librarian 3D Model Ultra Librarian EL5393ACS CAD Model

Description

The EL5393ACS is a current feedback amplifier integrated circuit (IC) from Elantec.

  • Series: EL5393A
  • Circuits: three
  • Bandwidth: 300 MHz
  • Slew Rate: 2200V/μs
  • Input Bias Current: 1μA
  • Input Offset Voltage: 1mV
  • Supply Current: 4mA (per channel)
  • Current Output: 120mA
  • Mounting: surface mountable
  • Package: 16-SOIC
  • Temperature Range: -40°C to 85°C
  • Suitable for: instrumentation and buffer amplifier applications
  • Status: obsolete
