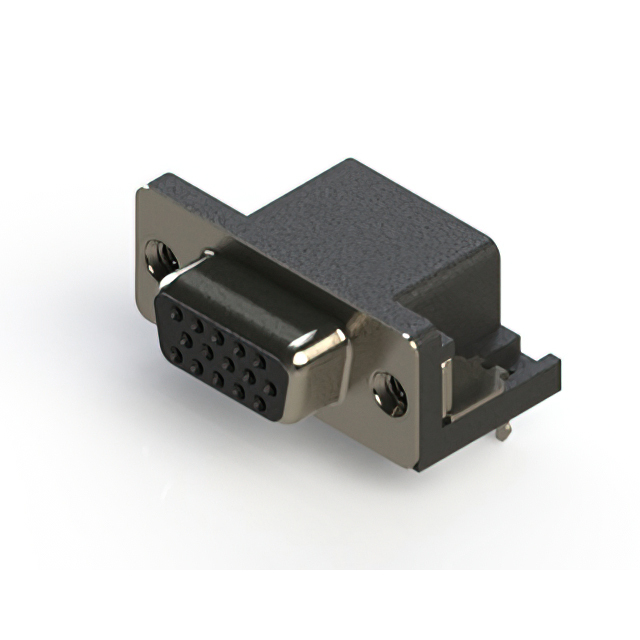

634-015-263-032 EDAC Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

634-015-263-032

Part No 634-015-263-032
Manufacturer EDAC Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD RCPT 15P R/A SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsD-Sub, D-Shaped ConnectorsD-Sub Connector Assemblies
Mfr EDAC Inc.
Series 634
Packaging Bulk
Part Status Active
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Mounting Type Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A per Contact
Backset Spacing 0.350" (8.89mm)
Features Board Lock, Mounting Brackets, Shielded
Dielectric Material Polyester Thermoplastic
Contact Material Copper Alloy
Operating Temperature -55°C ~ 85°C
Base Product Number 634-015
Ultra Librarian 3D Model Ultra Librarian 634-015-263-032 CAD Model
