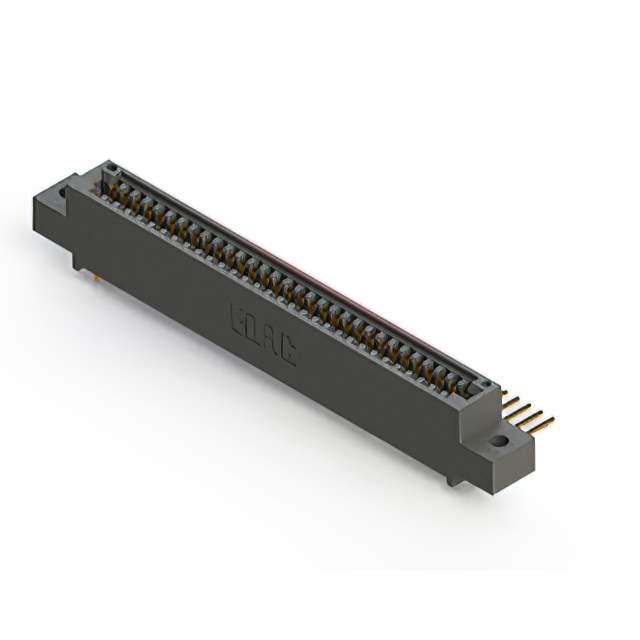

395-062-558-502 Real Image
Same model may have multiple batches, images only for reference.

395-062-558-502

Part No 395-062-558-502
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 395 SERIES (.100" (2.54MM) CONTA  /  62 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Datasheet
395-062-558-502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 395
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 31
Number of Positions 62
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Flange Feature Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 395-062
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-395-062-558-502
Standard Package 25
Win Source Part Number 1041210-395-062-558-502
Ultra Librarian 3D Model Ultra Librarian 395-062-558-502 CAD Model

Description

The EDAC Inc. 395-062-558-502 is a card edge connector with 62 positions and a pitch of 0.100" (2.54mm).

  • Gender: Female
  • Contact Type: Cantilever
  • Contact Finish: Gold with a thickness of 10.0µin (0.25µm)
  • Mounting Type: Through Hole, Right Angle
  • Package: Box
  • Temperature Range: -40°C ~ 105°C
