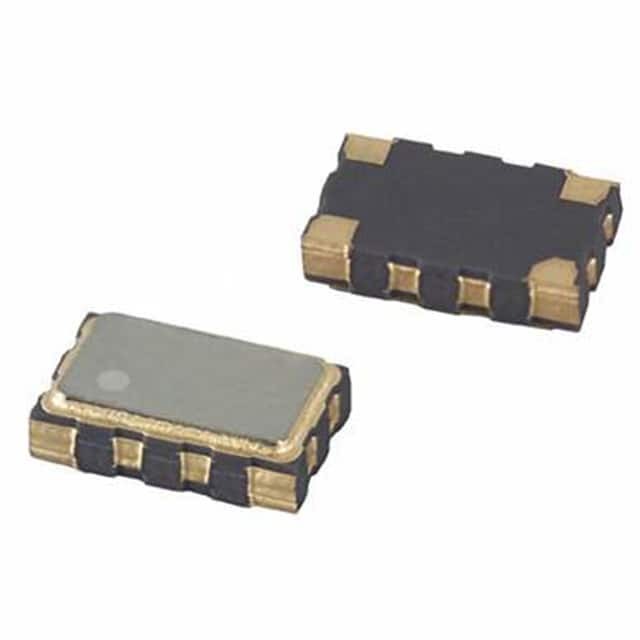

ECS-TXO-5032-147.4-TR
Same model may have multiple batches, images only for reference.

ECS-TXO-5032-147.4-TR

Part No ECS-TXO-5032-147.4-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC TCXO 14.7456MHZ HCMOS / 14.7456 MHz TCXO HCMOS Oscillator 3.3V 4-SMD, No Lead
Datasheet
ECS-TXO-5032-147.4-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr ECS Inc.
Series ECS-TXO-5032
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type TCXO
Frequency 14.7456 MHz
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±2.5ppm
Temperature Range - Operating -30°C ~ 85°C
Current - Supply (Max) 6mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 917817-ECS-TXO-5032-147.4-TR
Ultra Librarian 3D Model Ultra Librarian ECS-TXO-5032-147.4-TR CAD Model

Description

The ECS-TXO-5032-147.4-TR is a TCXO (Temperature Compensated Crystal Oscillator) in the ECS-TXO-5032 series.

  • Series: ECS-TXO-5032
  • Frequency: 14.7456 MHz
  • Frequency Stability: ±2.5ppm
  • Output: HCMOS format
  • Supply Voltage: 3.3V
  • Maximum Supply Current: 6mA
  • Package: surface mount type
  • Dimensions: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Seated Height: 0.059" (1.50mm)
  • Operating Temperature: -30°C to 85°C
  • Status: active
  • Manufacturer: ECS Inc.
