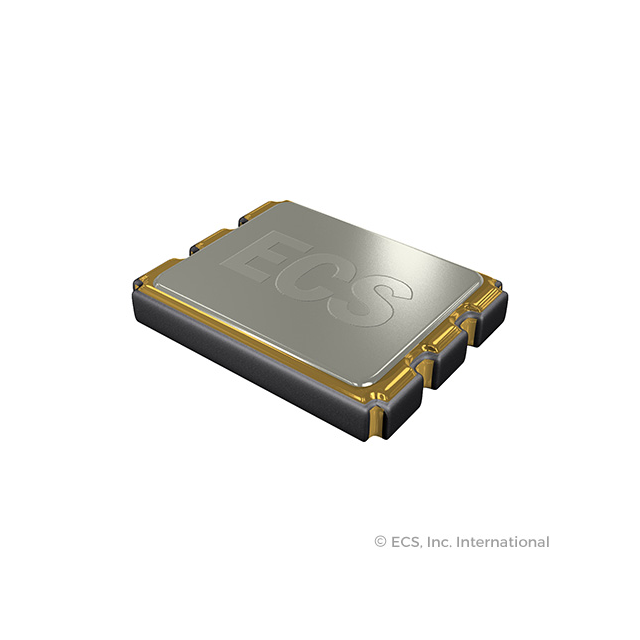

ECX2-LMV-3CN-100.000-TR Real Image
Same model may have multiple batches, images only for reference.

ECX2-LMV-3CN-100.000-TR

Part No ECX2-LMV-3CN-100.000-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description OSC XO 100.000MHZ LVDS SMD / 100 MHz XO (Standard) LVDS Oscillator 2.375V ~ 3.63V Enable/Disable 6-SMD, No Lead
Datasheet
ECX2-LMV-3CN-100.000-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr ECS Inc.
Series ECX2-LMV MultiVolt™
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.375V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 24mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 30µA
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1336857-ECX2-LMV-3CN-100.000-TR
Ultra Librarian 3D Model Ultra Librarian ECX2-LMV-3CN-100.000-TR CAD Model

Description

The ECX2-LMV MultiVolt™ oscillator is a high-performance crystal oscillator with a frequency of 100 MHz. ECS Inc.

  • Frequency: 100 MHz
  • Output: LVDS
  • Frequency Stability: ±25ppm
  • Oscillator Package: 6-SMD, No Lead
  • Mounting Type: Surface Mountable
  • Voltage Supply Range: 2.375V to 3.63V
  • Maximum Supply Current: 24mA
  • Function: Enable/Disable
  • Spread Spectrum Bandwidth: 0
  • Base Resonator: Crystal
  • Absolute Pull Range (APR): 0
  • REACH: Unaffected
  • ECCN: EAR99
