Same model may have multiple batches, images only for reference.

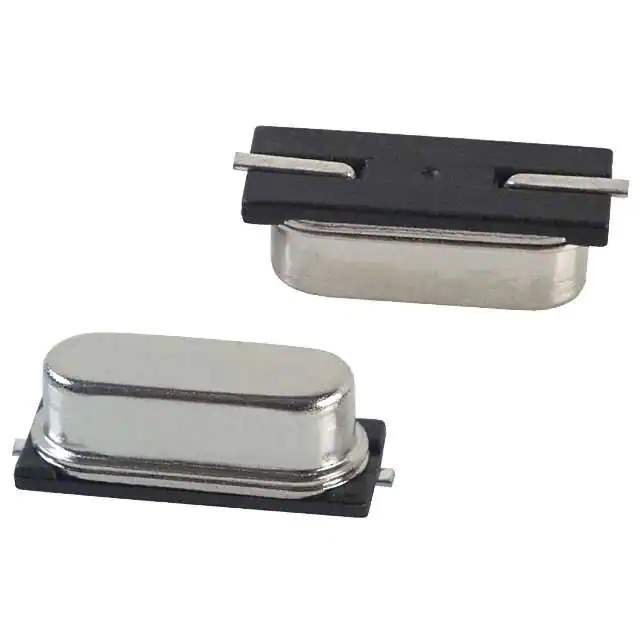

ECS-73-20-5PX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-73-20-5PX-TR

Part No ECS-73-20-5PX-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 7.3728MHZ 20PF SMD / 7.3728 MHz ±30ppm Crystal 20pF 60 Ohms HC-49/US
Datasheet
ECS-73-20-5PX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series CSM-7X
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 7.3728 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case HC-49/US
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.169" (4.30mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 917811-ECS-73-20-5PX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-73-20-5PX-TR CAD Model

Description

The 917811-ECS-73-20-5PX-TR is a MHz crystal oscillator manufactured by ECS Inc.

  • Series: CSM-7X
  • Type: crystal oscillator
  • Packaging: tape and reel
  • Size: 0.449" L x 0.189" W (11.40mm x 4.80mm)
  • Seated Height: 0.169" (4.30mm)
  • Standard Package: 1,000 pieces
  • Frequency: 7.3728 MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Mode: fundamental
  • Mounting: surface mountable
  • Temperature Range: -10°C to 70°C
