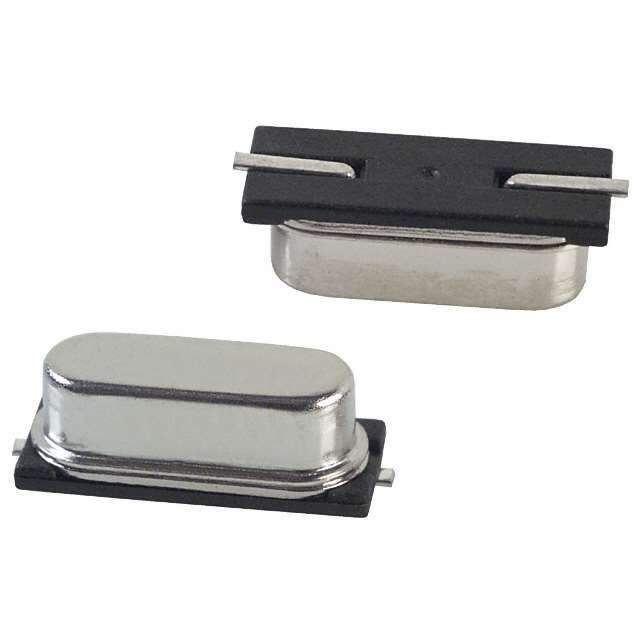

ECS-285.938-CD-0386TR Real Image
Same model may have multiple batches, images only for reference.

ECS-285.938-CD-0386TR

Part No ECS-285.938-CD-0386TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 28.5938MHZ 12PF SMD
Datasheet
ECS-285.938-CD-0386TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 28.5938MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 12pF
ESR 30 Ohm
Operating Mode Fundamental
Temperature Range - Operating -10°C to 70°C
Mounting SMD (SMT)
Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.169" (4.30mm)
Win Source Part Number 1093549-ECS-285.938-CD-0386TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECS-285.938-CD-0386TR CAD Model

Description

The MHz crystal has a frequency of 28.5938MHz with a frequency stability of ±30ppm and a frequency tolerance of ±20ppm, manufactured by ECS Inc.

  • Manufacturer: ECS Inc.
  • Frequency: 28.5938MHz
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • Operating Temperature Range: -10°C to 70°C
  • Packaging: Reel
  • Supply and Demand Status: Balanced
  • Category: Crystals, Oscillators, and Resonators
