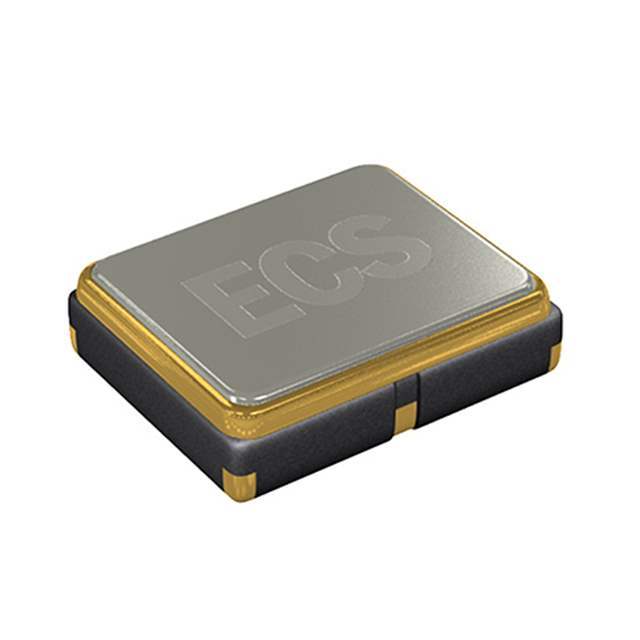

Same model may have multiple batches, images only for reference.
ECS-2520MV-240-BN-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-2520MV-240-BN-TR

Part No ECS-2520MV-240-BN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 24.0000MHZ CMOS SMD
Datasheet
ECS-2520MV-240-BN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203584-ECS-2520MV-240-BN-TR
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators -Oscillators
Series ECS-2520MV MultiVolt™
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Base Resonator Crystal
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Ultra Librarian 3D Model Ultra Librarian ECS-2520MV-240-BN-TR CAD Model

Description

The ECS-2520MV is a miniature SMD HCMOS Oscillator with MultiVolt capability of 1.6 ~ 3.6 V. The 2.5 x 2.0 x 0.8 mm ceramic package is ideal for LoRa WAN, Low Power/Portable, Industrial and IoT applications.

• 2.5 x 2.0 mm Footprint
• Extended Temp Range
• RoHS Compliant
• Wide Supply Voltage
• Low Jitter
• Compatible with 1.8V, 2.5V or 3.3V Power Supply
