ECS-1633-120-BN-TR ECS Inc. – Price, Stock & Datasheet

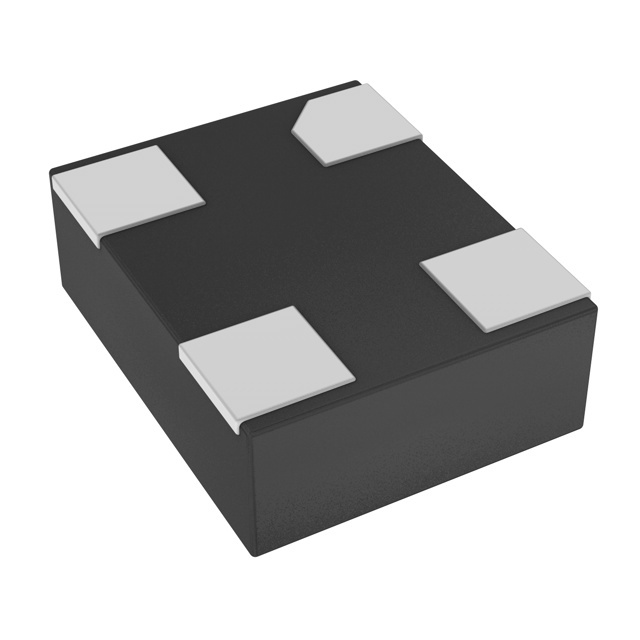

Same model may have multiple batches, images only for reference.

ECS-1633-120-BN-TR

Part No ECS-1633-120-BN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 12.0000MHZ CMOS SMD
Datasheet
ECS-1633-120-BN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Base Resonator Crystal
Type XO (Standard)
Frequency 12 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 6mA
Mounting Type Surface Mount
Case / Package 4-SMD, No Lead
Supplier Device Package 4-SMD (2x1.6)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.035\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1529721-ECS-1633-120-BN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-1633-120-BN-TR CAD Model
