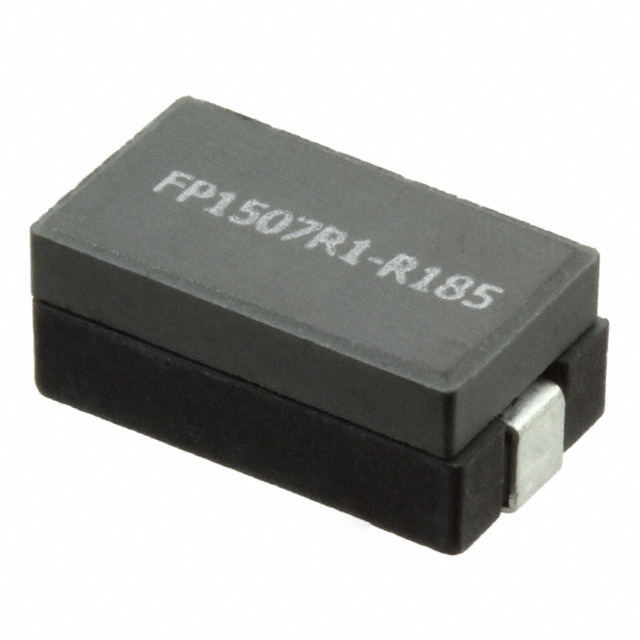

Same model may have multiple batches, images only for reference.

FP1507R1-R185-R

Name: FP1507R1-R185-R
Brand: Eaton-Electronics Division
SKU: WS1756002
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FP1507R1-R185-R
Manufacturer	Eaton-Electronics Division
Catalog	Fixed Inductors
Description	FIXED IND 185NH 45A 0.52MOHM SMD
Datasheet	FP1507R1-R185-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	185 nH
Tolerance	±10%
Current Rating (Amps)	45 A
Current - Saturation (Isat)	40A
Shielding	Shielded
DC Resistance (DCR)	0.52mOhm
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	2-SMD
Size / Dimension	0.575" L x 0.335" W (14.60mm x 8.50mm)
Height - Seated (Max)	0.264\
Ultra Librarian 3D Model	Ultra Librarian FP1507R1-R185-R CAD Model
