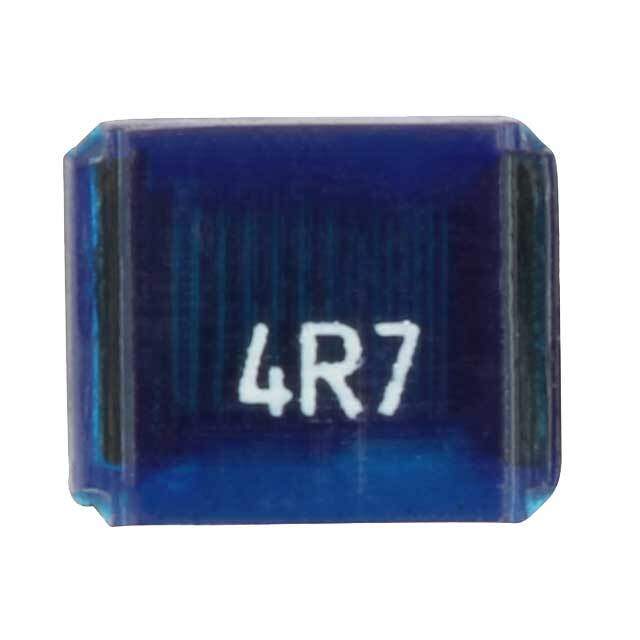

WCL3225-4R7-R Real Image
Same model may have multiple batches, images only for reference.

WCL3225-4R7-R

Part No WCL3225-4R7-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 4.7UH 350MA 1.3OHM SMD / 4.7 µH Unshielded Drum Core, Wirewound Inductor 350 mA 1.3Ohm Max Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series WCL3225
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 4.7 µH
Tolerance ±5%
Current Rating (Amps) 350 mA
Shielding Unshielded
DC Resistance (DCR) 1.3Ohm Max
Q @ Freq 12 @ 7.96MHz
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 7.96 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.138" L x 0.114" W (3.50mm x 2.90mm)
Height - Seated (Max) 0.089" (2.25mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 283-WCL3225-4R7-RTR,283-WCL3225-4R7-RDKR,283-WCL3225-4R7-RCT
Standard Package 2,000
Win Source Part Number 1104579-WCL3225-4R7-R
Ultra Librarian 3D Model Ultra Librarian WCL3225-4R7-R CAD Model

Description

The WCL3225-4R7-R is a fixed inductor that belongs to the Inductors, Coils, Chokes category.

  • Manufacturer: Eaton - Electronics Division
  • Category: Inductors, Coils, Chokes
  • Inductance: 4.7 µH
  • Tolerance: ±5%
  • DC Resistance: 1.3 ohms max
  • Current Rating: 350 mA
  • Operating Temperature: -40°C to 85°C
  • Frequency: 7.96 MHz
  • Package Size: 0.138" L x 0.114" W (3.50mm x 2.90mm)
  • Mounting Type: SMD (SMT)
  • Packaging: Tape and Reel
  • Standard Package: 2,000
  • Alternative Names: 283-WCL3225-4R7-RTR, 283-WCL3225-4R7-RDKR, 283-WCL3225-4R7-RCT
