Same model may have multiple batches, images only for reference.

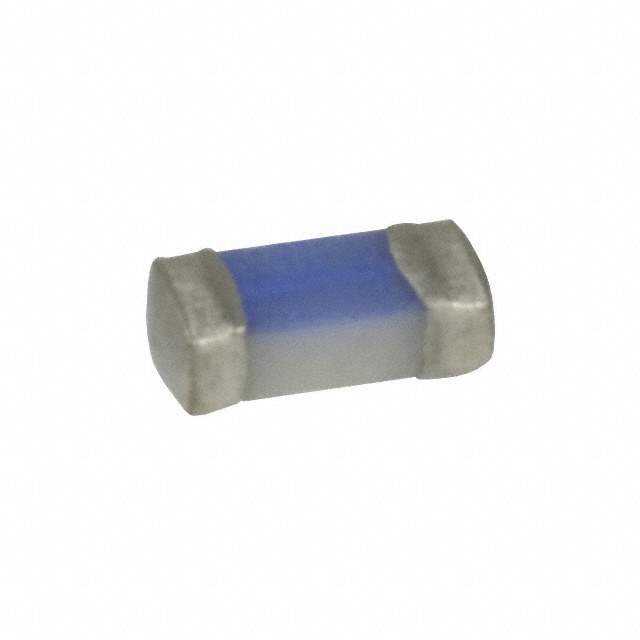

TR/0603FA1.5-R Real Image
Same model may have multiple batches, images only for reference.

TR/0603FA1.5-R

Part No TR/0603FA1.5-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 1.5A 32VAC/VDC 0603
Datasheet
TR/0603FA1.5-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1.5A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 35A
Nominal Melting - I2t 0.0319
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.086 Ohm
Win Source Part Number 103828-TR/0603FA1.5-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TR/0603FA1.5-R CAD Model

Description

The Eaton Bussmann board mount fuse is a circuit protection device that is designed to protect electrical systems from short circuits and overloads.

  • Current Rating: 1.5A
  • Voltage Rating: 32V AC/DC
  • Response Time: Fast-acting
  • Breaking Capacity: 35A @ rated voltage
  • Approvals: CSA and UL
  • Mounting: SMD (SMT) technology
  • Size: 0.0603 inches
  • Nominal Melting: 0.0319 I2t
