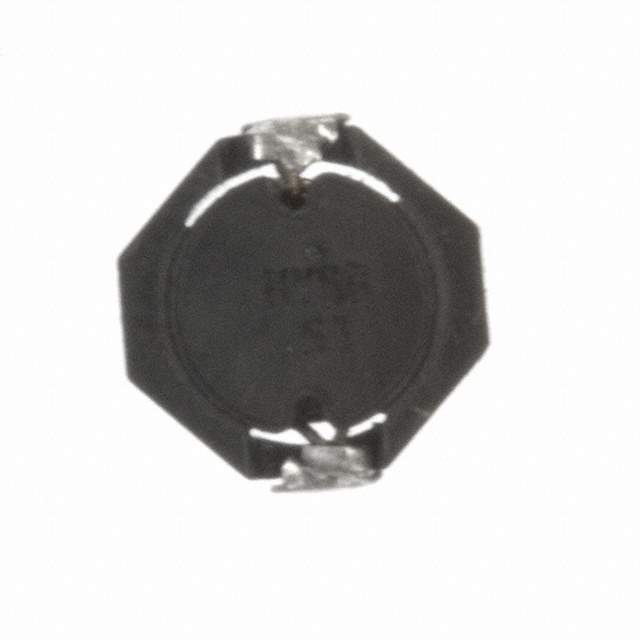

SD53-220-R Real Image
Same model may have multiple batches, images only for reference.

SD53-220-R

Part No SD53-220-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 22UH 810MA 208 MOHM
Datasheet
SD53-220-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 810mA
Current - Saturation 940mA
DC Resistance (DCR) 208 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 1095009-SD53-220-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SD53-220-R CAD Model

Description

The Eaton 1095009-SD53-220-R is a medium-popularity electronic component with a balanced supply and demand status.

  • Component Type: Wirewound Inductor
  • Packaging: Reel - TR
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Maximum DC Resistance (DCR): 208 mOhm
  • Current Rating: 810mA
  • Inductance: 22μH
  • Height - Seated (Max): 0.118" (3.00mm)
  • Core Material: Ferrite
  • Current Saturation: 940mA
  • Temperature Range: -40°C to 125°C
  • Suitable for: Inductors, Coils, Chokes
