Same model may have multiple batches, images only for reference.

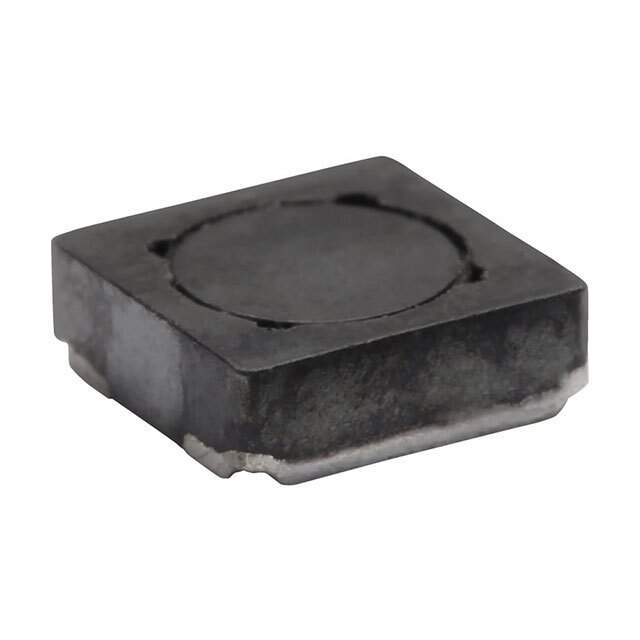

SD18-2R2-R Real Image
Same model may have multiple batches, images only for reference.

SD18-2R2-R

Part No SD18-2R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.55A 39.8 MOHM
Datasheet
SD18-2R2-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 2.55A
Current - Saturation 2.16A
DC Resistance (DCR) 39.8 mOhm
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 096782-SD18-2R2-R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SD18-2R2-R CAD Model

Description

The Eaton Bussmann SD18-2R2-R is a wirewound inductor with a current rating of 2.55A and an inductance of 2.2μH.

  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: ferrite
  • Current Saturation: 2.16A
  • Frequency Test: 100kHz
  • DC Resistance (DCR): 39.8 mOhm
  • Operating Temperature Range: -40°C to 85°C
  • Supply and Demand: sufficient
