Same model may have multiple batches, images only for reference.

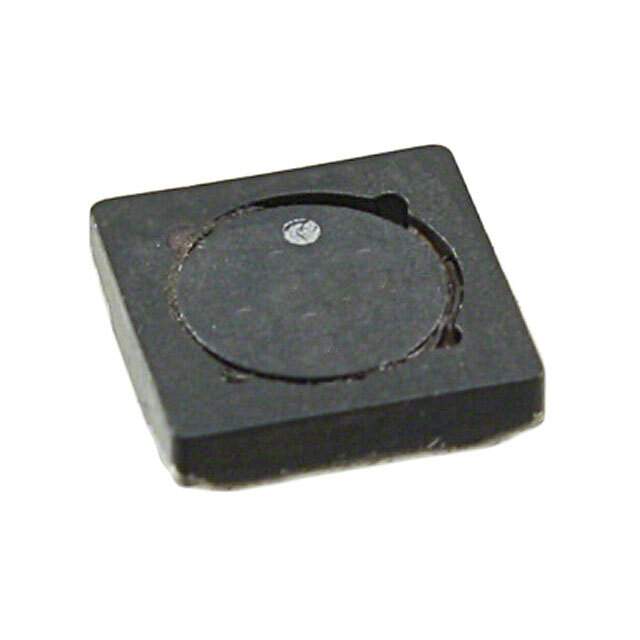

SD12-330-R Real Image
Same model may have multiple batches, images only for reference.

SD12-330-R

Part No SD12-330-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 33UH 519MA 928.9 MOHM
Datasheet
SD12-330-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 33μH
Tolerance ±20%
Current Rating 519mA
Current - Saturation 474mA
DC Resistance (DCR) 928.9 mOhm
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 129993-SD12-330-R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SD12-330-R CAD Model

Description

The Eaton Bussmann SD12-330-R is a wirewound type inductor with a current rating of 519mA and an inductance of 33μH.

  • Height-Seated (max): 0.047" (1.20mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • Material-Core: ferrite
  • DC Resistance (DCR): 928.9 mOhm
  • Current-Saturation: 474mA
  • Frequency-Self Resonant: not specified
  • Frequency-Test: not specified
  • Temperature Range for Operating: -40°C to 85°C
  • Supply and Demand: limited
