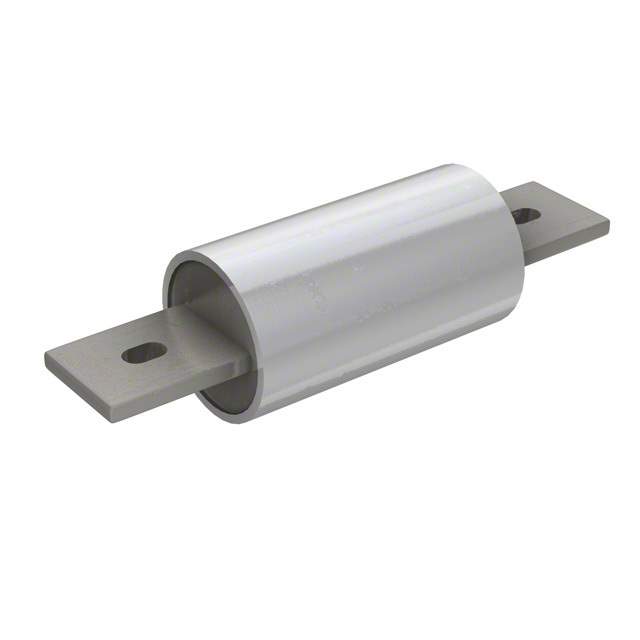

LPJ-110SP Real Image
Same model may have multiple batches, images only for reference.

LPJ-110SP

Part No LPJ-110SP
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 110A 600VAC/300VDC / 110A 600 V AC 300 V DC Fuse Cartridge Bolt Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Eaton - Bussmann Electrical Division
Series LOW-PEAK™ LPJ
Package Bulk
Mounting Type Bolt Mount
Fuse Type Cartridge
Current Rating (Amps) 110A
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Electrical, Industrial
Class J
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 300kA AC, 100kA DC
Package / Case Cylindrical, Blade Terminal (Bolt)
Dimension 1.500" Dia x 3.000" L (38.10mm x 76.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 1
Win Source Part Number 1035063-LPJ-110SP
Ultra Librarian 3D Model Ultra Librarian LPJ-110SP CAD Model

Description

The LOW-PEAK LPJ-110SP is a high-quality cartridge fuse from Eaton.

  • Voltage Rating: 600 V AC and 300 V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 300kA AC and 100kA DC @ rated voltage
  • Current Rating: 110A
  • Operating Temperature: -40°C to 125°C
  • Applications: Electrical and Industrial
