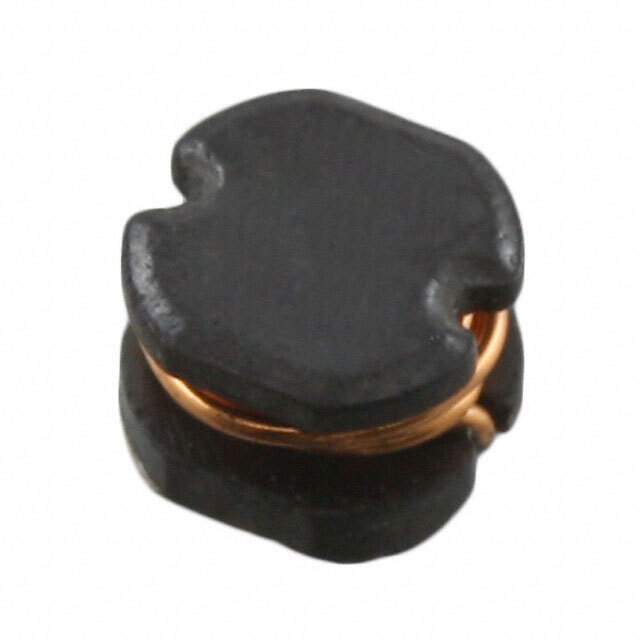

LD1-1R0-R Real Image
Same model may have multiple batches, images only for reference.

LD1-1R0-R

Part No LD1-1R0-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 1UH 2.66A 33 MOHM SMD / 1 µH Unshielded Drum Core, Wirewound Inductor 2.66 A 33mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series LD
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 2.66 A
Current - Saturation (Isat) 4.46A
Shielding Unshielded
DC Resistance (DCR) 33mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.126" (3.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names LD1-1R0,LD11R0R,513-1715-6,LD1-1R0-R-ND,513-1715-2,513-1715-1,LD1-1R0-ND
Standard Package 2,000
Win Source Part Number 1069144-LD1-1R0-R
Ultra Librarian 3D Model Ultra Librarian LD1-1R0-R CAD Model

Description

The Eaton - Electronics Division LD1-1R0-R is a fixed inductor that is suitable for various electronic applications.

  • Inductance: 1 µH
  • Current Rating: 2.66 A
  • Package: Tape & Reel
  • Package Quantity: 2000 pieces per package
  • Material: Ferrite
  • Maximum Height: 0.126 inches
  • Threat of Being Fake: Moderate
